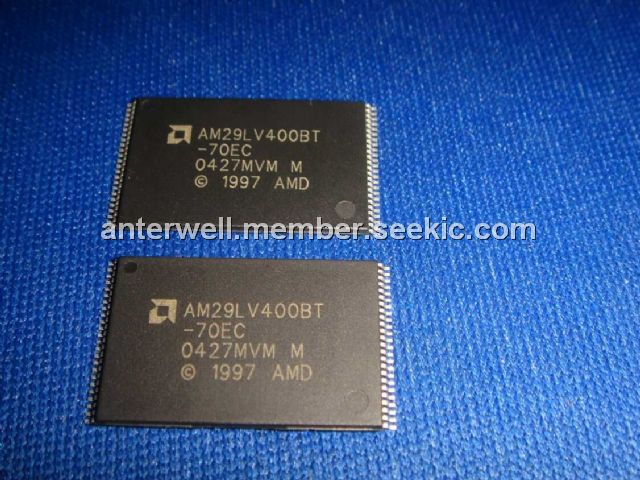

AM29LV400BT-70EC

4 Megabit, CMOS 3.0 Volt-only, Boot Sector Flash Memory, TSOP-48, High performance

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~1.20

PartNumber:: AM29LV400BT-70EC

Brand:: Advanced Micro Devices - AMD | Pack: TSOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ellen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-29

From Other Seller

Part Number:AM29LV400BT-70EC
US $1.00 - 1.20
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AM29LV400BT-70EC is an 4 Mbit, 3.0 volt-only Flash memory organized as 524,288 bytes or 262,144 words. The word-wide data (x16) appears on DQ15-DQ0; the byte-wide (x8) data appears on DQ7-DQ0. The AM29LV400BT-70EC requires only a single 3.0 volt power supply for both read and write functions. Internally generated and regulated voltages are provided for the program and erase operations. The AM29LV400BT-70EC is entirely command set compatible with the JEDEC single-power-supply Flash standard.

Parametrics

AM29LV400BT-70EC operation conditions: (1)VCC (Supply Voltage):2.7 V to 3.6 V; (2)Operating Temperature: Commercial:0℃ to +70℃, Industrial:–40℃ to +85℃, Extended:–55℃ to +125℃.

Features

AM29LV400BT-70EC features: (1)Single power supply operation: 2.7 to 3.6 V for read, program, and erase operations, Ideal for battery-powered applications; (2)Manufactured on 0.32 μm process technology; (3)High performance: 60R, 70, 80, 90, or 120 ns access time; (4)Low power consumption (typical values at 5MHz); (5)200 nA Automatic Sleep mode current; (6)200 nA standby mode current; (7)7 mA read current; (8)15 mA program/erase current; (9)One 16 Kbyte, two 8 Kbyte, one 32 Kbyte, and seven 64 Kbyte sectors (byte mode); (10)One 8 Kword, two 4 Kword, one 16 Kword, and seven 32 Kword sectors (word mode); (11)Supports full chip erase; (12)Unlock Bypass Program Command; (13)Top or bottom boot block configurations available; (14)Minimum 1,000,000 write cycle guarantee per sector; (15)Compatibility with JEDEC standards; (16)Data# Polling and toggle bits: Provides a software method of detecting program or erase operation completion; (17)Ready/Busy# pin (RY/BY#); (18)Erase Suspend/Erase Resume ; (19)Hardware reset pin (RESET#); (20)20-year data retention at 125℃; (21)Tested to datasheet specifications at temperature; (22)Quality and reliability levels equivalent to standard packaged components.
