Product Summary
The CY7C68013A-56PVXI is a low-power version of the EZ-USB FX2, which is a highly integrated, low-power USB 2.0 microcontroller. The FX2LP draws considerably less current than the CY7C68013A-56PVXI has double the on-chip code/data RAM and is it, form and function compatible with the 56-, 100-, and 128-pin FX2. Applications of the CY7C68013A-56PVXI include: Portable video recorder, MPEG/TV conversion, DSL modems, ATA interface, Memory card readers, Legacy conversion devices, Cameras, Scanners, Home PNA, Wireless LAN, MP3 players, Networking.
Parametrics
CY7C68013A-56PVXI absolute maximum ratings: (1) Storage Temperature: -65°C to +150°C; (2) Ambient Temperature with Power Supplied (Commercial) : 0°C to +70°C; (3) Ambient Temperature with Power Supplied (Industrial) : -40°C to 105°C; (4) Supply Voltage to Ground Potential: -0.5V to +4.0V; (5) DC Input Voltage to Any Input Pin: 5.25V; (6) DC Voltage Applied to Outputs in High Z State: -0.5V to VCC +0.5V; (7) Static Discharge Voltage: 300mW; (8) Max Output Current, per I/O port: 10mA; (9) Max Output Current, all five I/O ports (128- and 100-pin packages) : 50mA.
Features
CY7C68013A-56PVXI features: (1) USB 2.0-USB-IF high speed certified; (2) Single-chip integrated USB 2.0 transceiver, smart SIE, and enhanced 8051 microprocessor; (3) Ultra Low power; (4) Four programmable BULK/INTERRUPT/ISOCHRONOUS endpoints; (5) 8- or 16-bit external data interface; (6) Allows direct connection to most parallel interface; (7) Programmable waveform descriptors and configration registers to define waveforms; (8) Available in Commercial and Industrialtemperature grade (all packages except VFBGA) .

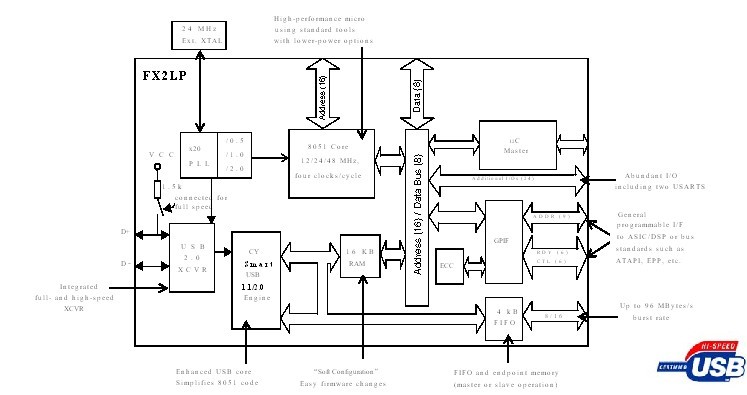

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

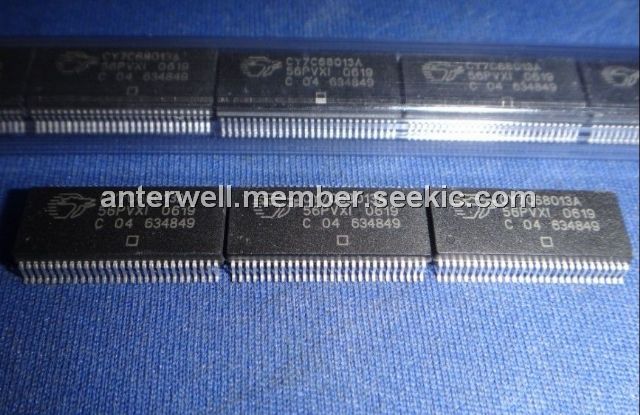

CY7C68013A-56PVXI |
Cypress Semiconductor |
8-bit Microcontrollers (MCU) EZ USB FX2LP LO PWR LO IND |
Data Sheet |
|
|
|||||||||||||
