Product Summary
The LM2940CT-5.0 positive voltage regulator features reability to source 1A of output curren twith a dropout voltage of typically 0.5V and a maximum of 1V over the entire temperature range. Designed also for vehicular applications, the LM2940CT-5.0 and all regulated circuit are protected from are reverse battery installations or 2-battery jumps. The LM2940CT-5.0 cannot be harmed by temporary mirror image insertion.
Parametrics
LM2940CT-5.0 absolute maximum ratings: (1) Internal Power Dissipation: Internally Limited; (2) Maximum Junction Temperature: 150°C; (3) Storage Temperature Range: -65°C≤Tj≤+150°C; (3) Lead Temperature,Time for Wave Soldering, TO-220 (T) Package: 260°C, 10s; (4) ESD Susceptibility: 2kV.
Features
LM2940CT-5.0 features: (1) Dropout voltage typically 0.5V @IO =1A; (2) Output current in excess of 1A; (3) Output voltage trimmed before assembly; (4)Reverse battery protection; (5) Internal short circuit current limit; (6) Mirror image insertion protection; (7) P+ Product Enhancement tested.

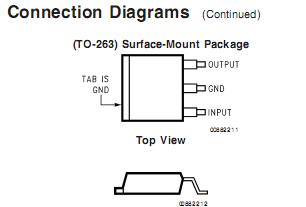

Diagrams
