Product Summary
The REF192G precision band gap voltage reference use a patented temperature drift curvature correction circuit and laser trimming of highly stable, thin-film resistors to achieve a very low temperature coefficient and high initial accuracy. The applications of the REF192G include Portable instruments, ADCs and DACs, Smart sensors, Solar-powered applications, Loop current-powered instruments
Parametrics
REF192G absolute maximum ratings: (1)Supply Voltage: -0.3 V, +18 V; (2)Output to GND: -0.3 V, VS + 0.3 V; (3)Output to GND Short-Circuit Duration: Indefinite; (4)Storage Temperature Range: PDIP, SOIC_N Package: -65℃ to +150℃; (5)Operating Temperature Range: -40℃ to +85℃; (6)Junction Temperature Range: -65℃ to +150℃; (7)Lead Temperature Range (Soldering 60 sec): 300℃.
Features
REF192G features: (1)Initial accuracy: ±2 mV maximum; (2)Temperature coefficient: 5 ppm/℃ maximum; (3)Low supply current: 45 μA maximum; (4)Sleep mode: 15 μA maximum; (5)Low dropout voltage; (6)Load regulation: 4 ppm/mA; (7)Line regulation: 4 ppm/V; (8)High output current: 30 mA; (9)Short-circuit protection.

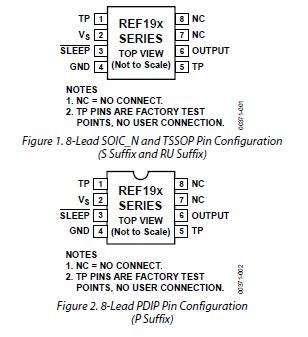

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() REF192GP |
![]() Analog Devices Inc |
![]() IC VOLT REF MCPWR 2.5V 8-DIP |
![]() Data Sheet |
![]()
|
|
||||||||||||||||||||
![]() |
![]() REF192GPZ |
![]() |
![]() IC VREF SERIES PREC 2.5V 8-PDIP |
![]() Data Sheet |
![]()
|
|
||||||||||||||||||||
![]() |
![]() REF192GRU-REEL7 |
![]() Analog Devices Inc |
![]() IC VOLT REF MCPWR 2.5V 8-TSSOP |
![]() Data Sheet |
![]()
|
|
||||||||||||||||||||
![]() REF192GRUZ |
![]() |
![]() IC VREF SERIES PREC 2.5V 8-TSSOP |
![]() Data Sheet |
![]()
|
|
|||||||||||||||||||||
![]() REF192GRUZ-REEL7 |
![]() |
![]() IC VREF SERIES PREC 2.5V 8-TSSOP |
![]() Data Sheet |
![]() Negotiable |
|
|||||||||||||||||||||
![]() |
![]() REF192GS |
![]() |
![]() IC VREF SERIES PREC 2.5V 8-SOIC |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||||||||||
![]() |
![]() REF192GS-REEL |
![]() |
![]() IC VREF SERIES PREC 2.5V 8-SOIC |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||||||||||
![]() |
![]() REF192GS-REEL7 |
![]() |
![]() IC VREF SERIES PREC 2.5V 8-SOIC |
![]() Data Sheet |
![]() Negotiable |
|
