Product Summary

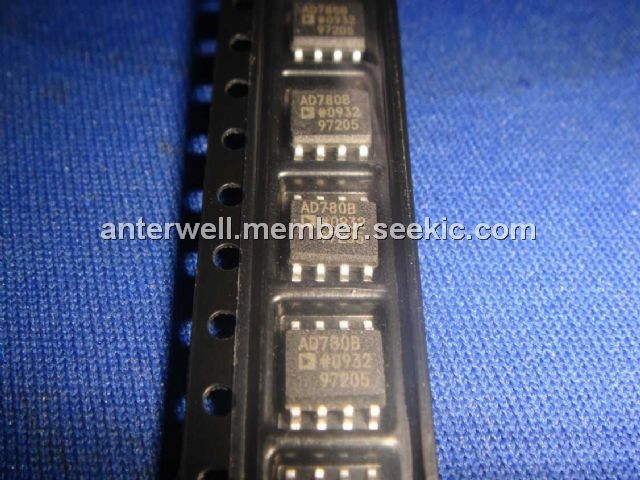

The AD780BRZ is an ultrahigh precision bandgap reference voltage which provides a 2.5 V or 3.0 V output from inputs between 4.0 V and 36 V. Low initial error and temperature drift combined with low output noise and the ability to drive any value of capacitance make the AD780BRZ the ideal choice for enhancing the performance of high resolution ADCs and DACs and for any general purpose precision reference application. The AD780BRZ can be used to source or sink up to 10 mA and can be used in series or shunt mode, thus allowing positive or negative output voltages without external components. This makes it suitable for virtually any high performance reference application.
Parametrics
AD780BRZ absolute maximum ratings: (1)VIN to Ground:36 V; (2)Trim Pin to Ground:36 V; (3)Temp Pin to Ground:36 V; (4)Power Dissipation (25℃):500 mW; (5)Storage Temperature:–65℃ to +150℃; (6)Lead Temperature (Soldering, 10 sec):300℃; (7)ESD Classification:Class 1 (1000 V).
Features
AD780BRZ features: (1)Pin-Programmable 2.5 V or 3.0 V Output; (2)Ultralow Drift: 3 ppm/℃ max; (3)High Accuracy: 2.5 V or 3.0 V ± 1 mV max; (4)Low Noise: 100 nV/√Hz; (5)Noise Reduction Capability; (6)Low Quiescent Current: 1 mA max; (7)Output Trim Capability; (8)Plug-In Upgrade for Present References; (9)Temperature Output Pin; (10)Series or Shunt Mode Operation (±2.5 V, ±3.0 V).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD780BRZ |
|
IC VREF SERIES SHUNT PREC 8-SOIC |
Data Sheet |
|
|
||||||||||||||||
|
AD780BRZ-REEL |
|
IC VREF SERIES SHUNT PREC 8-SOIC |
Data Sheet |
|
|
||||||||||||||||
|
AD780BRZ-REEL7 |
|
IC VREF SERIES SHUNT PREC 8-SOIC |
Data Sheet |
|
|
||||||||||||||||
