Product Summary

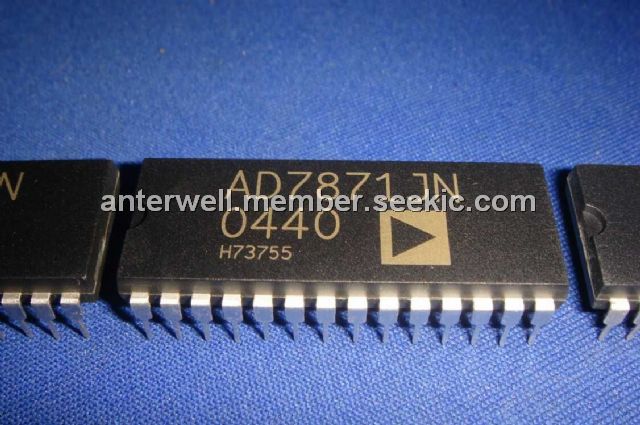

The AD7871JN is a fast, complete, 14-bit analog-to-digital converter. It consists of a track/hold amplifier, successive-approximation ADC, 3 V buried Zener reference and versatile interface logic. The AD7871JN features a self-contained, laser trimmed internal clock, so no external clock timing components are required. The on-chip clock may be overridden to synchronize ADC operation to the digital system for minimum noise. The applications of the AD7871JN are Digital Signal Processing, High Speed Modems, Speech Recognition and Synthesis, Spectrum Analysis, DSP Servo Control.
Parametrics
AD7871JN absolute maximum ratings: (1)VDD to AGND:–0.3 V to +7 V; (2)VSS to AGND:+0.3 V to –7 V; (3)AGND to DGND:–0.3 V to VDD + 0.3 V; (4)VIN to AGND:VSS–0.3 V to VDD + 0.3 V; (5)REF OUT, CREF to AGND:0 V to VDD; (6)Digital Inputs to DGND:–0.3 V to VDD + 0.3 V; (7)Digital Outputs to DGND:–0.3 V to VDD + 0.3 V; (8)Operating Temperature Range: Commercial (J, K Versions):0℃ to +70℃， Industrial (A, B Versions):–40℃ to +85℃， Extended (T Version):–55℃ to +125℃; (9)Storage Temperature Range:–65℃ to +150℃; (10)Lead Temperature (Soldering, 10 sec):+300℃; (11)Power Dissipation (Any Package) to +75℃:450 mW; (12)Derates above +75℃ by:6 mW/℃.
Features
AD7871JN features: (1)Complete Monolithic 14-Bit ADC; (2)2s Complement Coding; (3)Parallel, Byte and Serial Digital Interface; (4)80 dB SNR at 10 kHz Input Frequency; (5)57 ns Data Access Time; (6)Low Power:50 mW typ; (7)83 kSPS Throughput Rate.

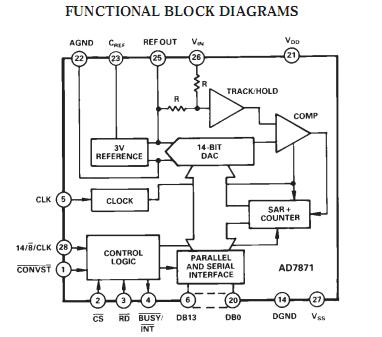

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD7871JN |
|
IC ADC 14BIT SAMPLING 28-DIP |
Data Sheet |
|
|
||||||||||||
|
AD7871JNZ |
|
IC ADC 14BIT SAMPLING 28-DIP |
Data Sheet |
|
|
||||||||||||
