Product Summary

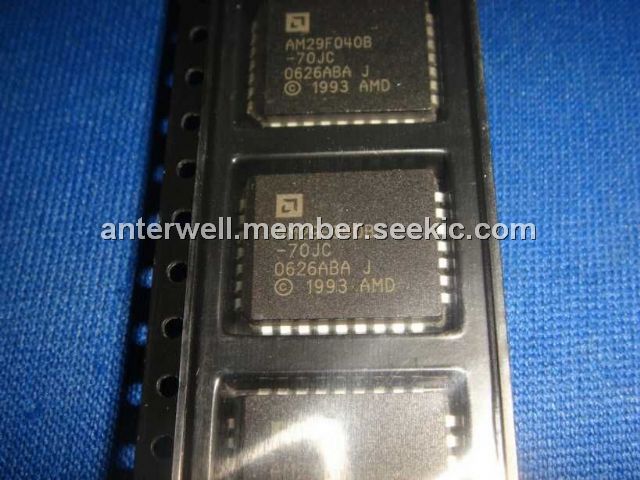

The AM29F040B-70JC is a 4 Mbit, 5.0 volt-only Flash memory organized as 524,288 Kbytes of 8 bits each. The 512 Kbytes of data are divided into eight sectors of 64 Kbytes each for flexible erase capability. The AM29F040B-70JC is offered in 32-pin PLCC, TSOP, and PDIP packages. This device is designed to be programmed in-system with the standard system 5.0 volt VCC supply. The AM29F040B-70JC offers access times of 55, 70, 90, and 120 ns, allowing high-speed microprocessors to operate without wait states. To eliminate bus contention the device has separate chip enable(CE#), write enable (WE#) and output enable (OE#) controls.

Parametrics

AM29F040B-70JC absolute maximum ratings: (1)Storage Temperature Plastic Packages:–65℃ to +125℃; (2)Ambient Temperature with Power Applied:–55℃ to +125℃; (3)Voltage with Respect to Ground: VCC:–2.0 V to 7.0 V, A9, OE:-2.0 V to 12.5 V, All other pins:–2.0 V to 7.0 V; (4)Output Short Circuit Current:200 mA.

Features

AM29F040B-70JC features: (1)5.0 V ±10% for read and write operations: Minimizes system level power requirements; (2)Manufactured on 0.32 μm process technology: Compatible with 0.5μm Am29F040 device; (3)High performance:Access times as fast as 55 ns; (4)20 mA typical active read current; (5)30 mA typical program/erase current; (6)1 μA typical standby current (standard access time to active mode); (7)8 uniform sectors of 64 Kbytes each; (8)Any combination of sectors can be erased; (9)Supports full chip erase; (10)Minimum 1,000,000 program/erase cycles per ; (11)sector guaranteed; (12)20-year data retention at 125℃:Reliable operation for the life of the system; (13)Package options:32-pin PLCC, TSOP, or PDIP; (14)Compatible with JEDEC standards:Pinout and software compatible with single-power-supply Flash standard, Superior inadvertent write protection; (15)Data# Polling and toggle bits:Provides a software method of detecting program or erase cycle completion; (16)Erase Suspend/Erase Resume.

Diagrams

AM29F040B-70JC block diagram
