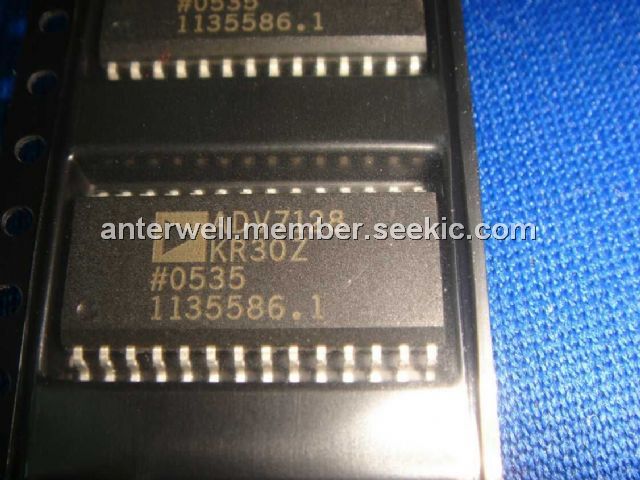

Product Summary

The ADV7128KR30Z is a video speed, digital-to-analog converter on a single monolithic chip. It consists of a high speed, 10-bit, video D/A converters, a standard TTL input interface and a high impedance, analog output, current source. The ADV7128KR30Z has a 10-bit pixel input port. A single +5 V power supply, an external 1.23 V reference and pixel clock input are and all that are required to make the part operational. The ADV7128KR30Z is fabricated in a +5 V CMOS process. Its monolithic CMOS construction ensures greater functionality with low power dissipation.

Parametrics

ADV7128KR30Z absolute maximum ratings: (1)VAA to GND:+7 V; (2)Voltage on Any Digital Pin:GND –0.5 V to VAA +0.5 V; (3)Ambient Operating Temperature (TA):0℃ to +70℃; (4)Storage Temperature (TS):–65℃ to +150℃; (5)Junction Temperature (TJ):+150℃; (6)Lead Temperature (Soldering, 10 secs):+300℃; (7)Vapor Phase Soldering (2 minutes):+220℃; (8)IOUT to GND1:0 V to VAA.

Features

ADV7128KR30Z features: (1)80 MHz Pipelined Operation; (2)10-Bit D/A Converters; (3)RS-343A/RS-170 Compatible Outputs; (4)TTL Compatible Inputs; (5)+5 V CMOS Monolithic Construction; (6)28-Pin SOIC Package.

Diagrams

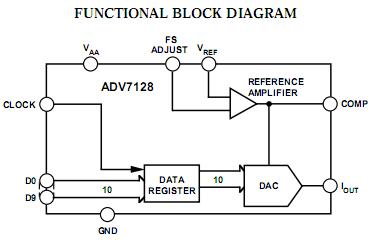

ADV7128KR30Z block diagram
