Product Summary

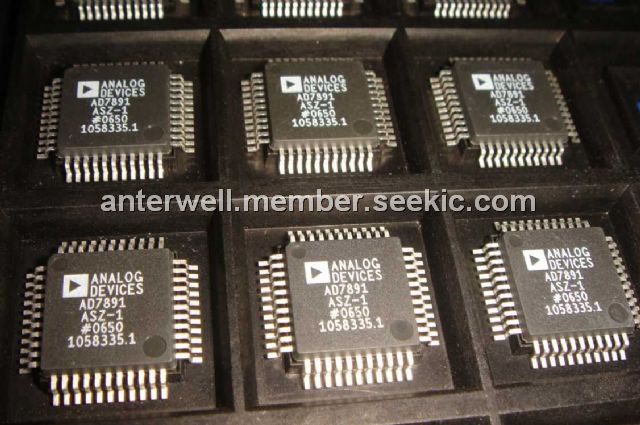

The AD7891AS-1 is an eight-channel 12-bit data acquisition system with a choice of either parallel or serial interface structure. The part contains an input multiplexer, an on-chip track/hold amplifier, a high speed 12-bit ADC, a +2.5V reference and a high speed interface. The AD7891AS-1 provides the option of either a parallel interface or serial interface structure determined by the MODE pin. The applications of the AD7891AS-1 are Data Acquisition Systems, Motor Control, Mobile Communication Base Stations, Instrumentation.
Parametrics
AD7891AS-1 absolute maximum ratings: (1)VDD to AGND:–0.3 V to +7 V; (2)VDD to DGND:–0.3 V to +7 V; (3)Analog Input Voltage to AGND:±17 V; (4)Reference Input Voltage to AGND:–0.3 V to VDD + 0.3 V; (5)Digital Input Voltage to DGND:–0.3 V to VDD + 0.3 V; (6)Digital Output Voltage to DGND:–0.3 V to VDD + 0.3 V; (7)Operating Temperature Range: Commercial (A, B Version):–40℃ to +85℃, Automotive (Y Version):–55℃ to +105℃; (8)Storage Temperature Range:–65℃ to +150℃; (9)Junction Temperature:+150℃.
Features
AD7891AS-1 features: (1)Fast 12-Bit ADC with 1.6 ms Conversion Time; (2)Eight Single-Ended Analog Input Channels; (3)Overvoltage Protection on Each Channel; (4)Selection of Input Ranges: ±5V, ±10V for AD7891-1; (5)Parallel and Serial Interface; (6)On-Chip Track/Hold Amplifier; (7)On-Chip Reference; (8)Single Supply, Low Power Operation (85 mW max); (9)Power-Down Mode (75μW typ).

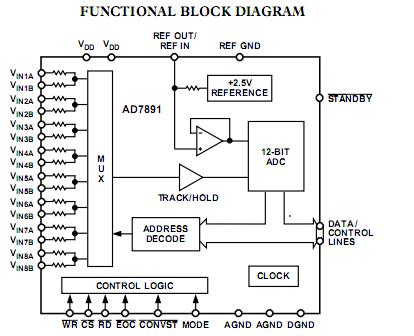

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AD7891AS-1 |
Analog Devices Inc |
IC DAS 12BIT 8CH HI-SPD 44-MQFP |
Data Sheet |
Negotiable |
|
|||||||||||||
