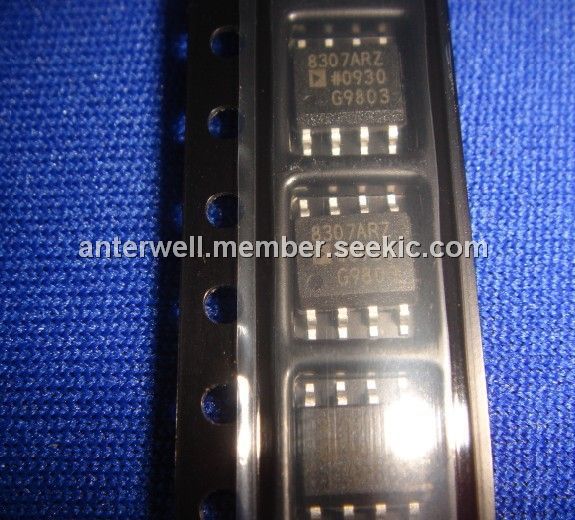

Product Summary
The AD8307ARZ is the first logarithmic amplifier made available in an 8-lead (SOIC-8) package. It is a complete 500 MHz monolithic demodulating logarithmic amplifier based on the progressive compression (successive detection) technique, providing a dynamic range of 92 dB to ±3 dB law-conformance and 88 dB to a tight ±1 dB error bound at all frequencies up to 100 MHz.
Parametrics
Absolute maximum ratings: (1)Supply: 7.5 V; (2)Input Voltage: VSUPPLY; (3)Storage Temperature Range, N, R: -65°C to +125°C; (4)Ambient Temperature Range: -40°C to +85°C; (5)Lead Temperature Range: 300°C.
Features
Features: (1)Complete multistage logarithmic amplifier; (2)92 dB dynamic range: –75 dBm to +17 dBm to –90 dBm using matching network; (3)Single supply of 2.7 V minimum at 7.5 mA typ; (4)DC to 500 MHz operation, ±1 dB linearity; (5)Slope of 25 mV/dB, intercept of -84 dBm; (6)Highly stable scaling over temperature; (7)Fully differential dc-coupled signal path; (8)100 ns power-up time, 150 μA sleep current.

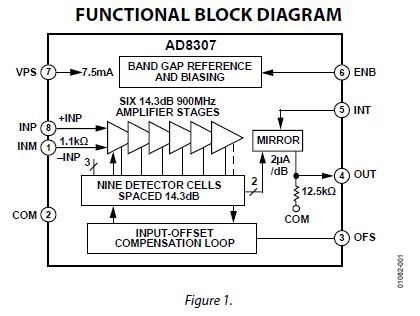

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD8307ARZ |
|
IC LOGARITHMIC AMP 92DB 8-SOIC |
Data Sheet |
|
|
||||||||||||||||
|
AD8307ARZ-REEL |
|
IC AMP LOGARITHMIC 8SOIC |
Data Sheet |
|
|
||||||||||||||||
|
AD8307ARZ-RL7 |
|
IC AMP LOGARITHMIC 8-SOIC |
Data Sheet |
