Product Summary

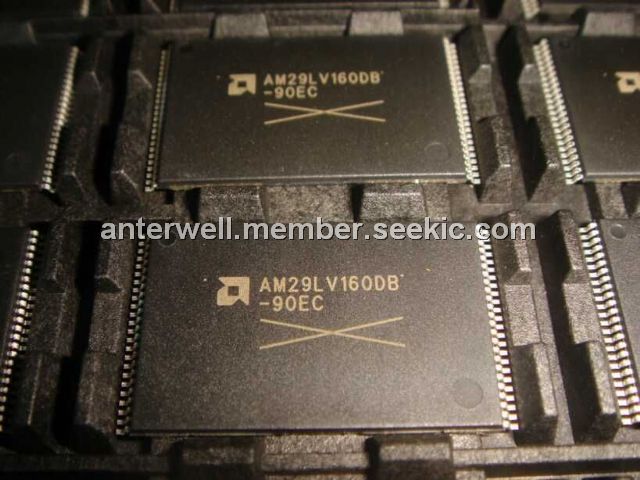

The AM29LV160DB-90EC is a 16 Mbit, 3.0 Volt-only Flash memory organized as 2,097,152 bytes or 1,048,576 words. The device is offered in 48-ball FBGA, 44-pin SO, and 48-pin TSOP packages. The word-wide data (x16) appears on DQ15-DQ0; the byte-wide (x8) data appears on DQ7-DQ0. The AM29LV160DB-90EC is designed to be programmed in-system with the standard system 3.0 volt VCC supply. A 12.0 V VPP or 5.0 VCC are not required for write or erase operations. The AM29LV160DB-90EC can also be programmed in standard EPROM programmers.

Parametrics

AM29LV160DB-90EC absolute maximum ratings: (1)Storage Temperature Plastic Packages:–65℃ to +150℃; (2)Ambient Temperature with Power Applied:–65℃ to +125℃; (3)Voltage with Respect to Ground: VCC:–0.5 V to +4.0 V, A9, OE#, and RESET# :–0.5 V to +12.5 V, All other pins:–0.5 V to VCC+0.5 V; (4)Output Short Circuit Current:200 mA.

Features

AM29LV160DB-90EC features: (1)Single power supply operation; (2)Manufactured on 0.23 μm process technology: Fully compatible with 0.32 μm Am29LV160B device; (3)High performance: Access times as fast as 70 ns; (4)200 nA Automatic Sleep mode current; (5)200 nA standby mode current; (6)9 mA read current; (7)20 mA program/erase current; (8)Ultra low power consumption (typical values at 5 MHz); (9)One 16 Kbyte, two 8 Kbyte, one 32 Kbyte, and thirty-one 64 Kbyte sectors (byte mode); (10)One 8 Kword, two 4 Kword, one 16 Kword, and thirty-one 32 Kword sectors (word mode); (11)Supports full chip erase; (12)Unlock Bypass Program Command; (13)Top or bottom boot block configurations available; (14)Minimum 1,000,000 write cycle guarantee per sector; (15)20-year data retention at 125℃: Reliable operation for the life of the system; (16)Package option: 48-ball FBGA, 48-pin TSOP, 44-pin SO; (17)Compatibility with JEDEC standards: Pinout and software compatible with single-power supply Flash, Superior inadvertent write protection; (18)Provides a software method of detecting program or erase operation completion; (19)Erase Suspend/Erase Resume ; (20)Hardware reset pin (RESET#): Hardware method to reset the device to reading array data.

Diagrams

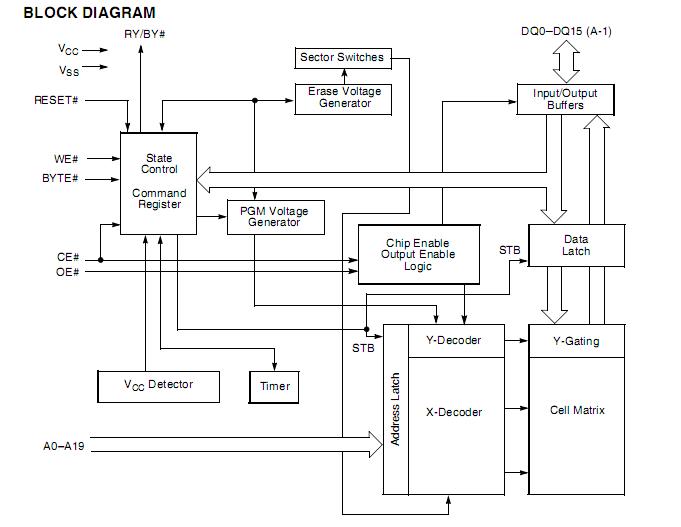

AM29LV160DB-90EC block diagram
