Product Summary

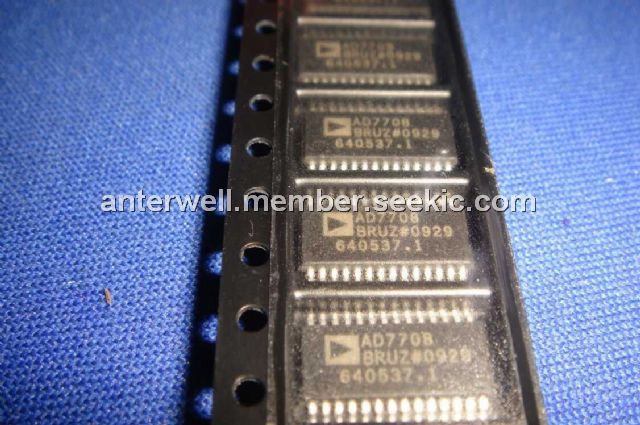

The AD7708BRUZ is a low voltage ADC for low frequency measurement applications. Input signal ranges from 20 mV to 2.56 V can be directly converted using these ADC. Signals can be converted directly from a transducer without the need for signal conditioning. The AD7708BRUZ operates from a 32 kHz crystal with an on-board PLL generating the required internal operating frequency. The applications of the AD7708BRUZ are Industrial Process Control, Instrumentation, Pressure Transducers, Portable Instrumentation, Smart Transmitters.

Parametrics

AD7708BRUZ absolute maximum ratings: (1)AVDD to AGND:–0.3 V to +7 V; (2)AVDD to DGND:–0.3 V to +7 V; (3)DVDD to AGND:–0.3 V to +7 V; (4)DVDD to DGND:–0.3 V to +7 V; (5)AGND to DGND:–0.05 V to +0.05 V; (6)AVDD to DVDD:–5 V to +5 V; (7)Analog Input Voltage to AGND:–0.3 V to AVDD +0.3 V; (8)Reference Input Voltage to AGND:–0.3 V to AVDD +0.3 V; (9)Total AIN/REFIN Current (Indefinite):30 mA; (10)Digital Input Voltage to DGND:–0.3 V to DVDD +0.3 V; (11)Digital Output Voltage to DGND:–0.3 V to DVDD +0.3 V; (12)Operating Temperature Range:–40℃ to +85℃; (13)Storage Temperature Range:–65℃ to +150℃; (14)Junction Temperature:150℃; (15)Lead Temperature, Soldering: Vapor Phase (60 sec):215℃, Infrared (15 sec):220℃.

Features

AD7708BRUZ features: (1)8-Channel, High Resolution ADC; (2)AD7708 Has 16-Bit Resolution; (3)Factory-Calibrated; (4)Single Conversion Cycle Setting; (5)Programmable Gain Front End; (6)Simultaneous 50 Hz and 60 Hz Rejection; (7)VREF Select Allows Absolute and Ratiometric Measurement Capability; (8)Operation Can Be Optimized for Analog Performance (CHOP = 0) or Channel Throughput (CHOP = 1).

Diagrams

AD7708BRUZ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD7708BRUZ
AD7708BRUZ

IC ADC 16BIT R-R 8/10CH 28-TSSOP
Data Sheet
0-1: $5.56
1-10: $5.01
10-25: $4.56
25-100: $4.12
100-250: $3.78
250-500: $3.45
500-1000: $3.00
1000-2500: $2.97
AD7708BRUZ-REEL
AD7708BRUZ-REEL

IC ADC 16BIT R-R 8/10CH 28TSSOP
Data Sheet
0-2500: $2.97
AD7708BRUZ-REEL7
AD7708BRUZ-REEL7

IC ADC 16BIT R-R 8/10CH 28TSSOP
Data Sheet
0-1000: $3.00
