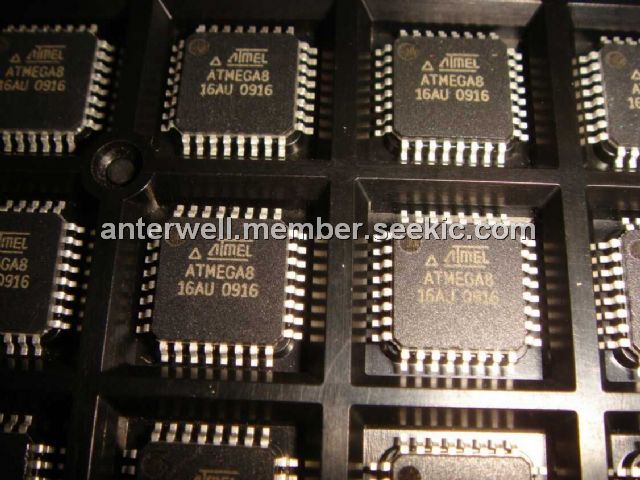

ATMEGA8-16AU

low-power, CMOS 8-bit microcontroller, QFP-32, On-chip 2-cycle Multiplier, High-performance

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.80~0.90 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.80~0.90

PartNumber:: ATMEGA8-16AU

Brand:: ATMEL Corporation - ATMEL | Pack: QFP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ellen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-06

From Other Seller

Part Number:ATMEGA8-16AU
US $0.80 - 0.90
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The ATMEGA8-16AU is a low-power CMOS 8-bit microcontroller based on the AVR RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA8-16AU achieves throughputs approaching 1 MIPS per MHz, allowing the system designer to optimize power consumption versus processing speed.

Parametrics

ATMEGA8-16AU absolute maximum ratings: (1)Operating Temperature:-55℃ to +125℃; (2)Storage Temperature:-65℃ to +150℃; (3)Voltage on any Pin except RESET with respect to Ground:-0.5V to VCC+0.5V; (4)Voltage on RESET with respect to Ground:-0.5V to +13.0V; (5)Maximum Operating Voltage:6.0V; (6)DC Current per I/O Pin:40.0 mA; (7)DC Current VCC and GND Pins:300.0 mA.

Features

ATMEGA8-16AU features: (1)130 Powerful Instructions – Most Single-clock Cycle Execution; (2)32 x 8 General Purpose Working Registers; (3)Fully Static Operation; (4)Up to 16 MIPS Throughput at 16 MHz; (5)On-chip 2-cycle Multiplier; (6)8K Bytes of In-System Self-programmable Flash program memory; (7)512 Bytes EEPROM; (8)1K Byte Internal SRAM; (9)Write/Erase Cycles: 10,000 Flash/100,000 EEPROM; (10)Two 8-bit Timer/Counters with Separate Prescaler, one Compare Mode; (11)One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode; (12)Real Time Counter with Separate Oscillator; (13)Three PWM Channels; (14)8-channel ADC in TQFP and QFN/MLF package; (15)Byte-oriented Two-wire Serial Interface; (16)Programmable Serial USART; (17)Master/Slave SPI Serial Interface; (18)Programmable Watchdog Timer with Separate On-chip Oscillator; (19)On-chip Analog Comparator; (20)Power-on Reset and Programmable Brown-out Detection; (21)Internal Calibrated RC Oscillator; (22)External and Internal Interrupt Sources.
