Product Summary

The LT1010CT is designed as a fast, unity-gain buffer that can increase the output capability of existing IC op amps by more than an order of magnitude. This easy to use part makes fast amplifiers less sensitive to capacitive loading, reduces thermal feedback in precision DC amplifiers and is recommended for a wide range of fast and slow applications. It is designed to be incorporated within the feedback loop.

Parametrics

Absolute maximum ratings: (1)Its total supply voltage would be +/-22V. (2)Its continuous output current would be +/-150mA. (3)Its continuous power dissipation would be 4.0W. (4)Its input current would be +/-40mA. (5)Its operating junction temperature range would be from 0°C to 125°C. (6)Its storage temperature range would be from -65°C to 150°C. (7)Its lead temperature soldering 10 seconds would be 300°C.

Features

Features: (1)20MHz bandwidth. (2)75V/us slew rate. (3)Drives +/-10V into 75Ω. (4)5mA quiescent current. (5)Drives capacitive loads >1uF. (6)Current and thermal limit. (7)Operates from single supply >=4.5V. (8)Very low distortion operation.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LT1010CT
LT1010CT

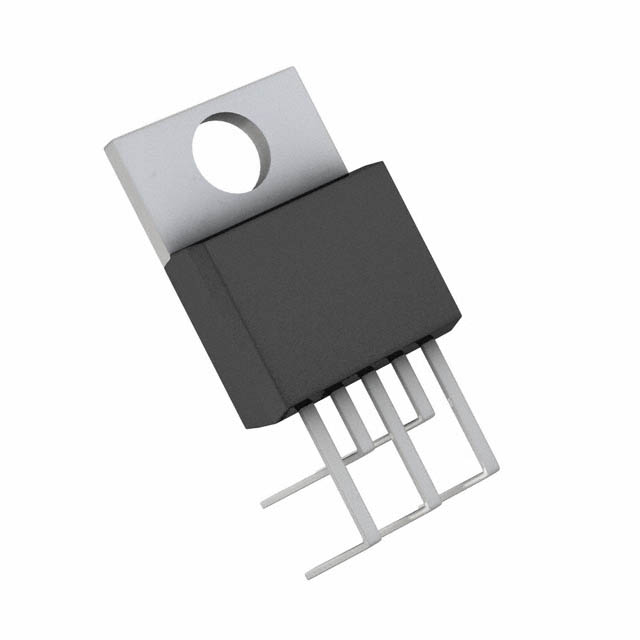

IC BUFFER HI-SPEED 150MA TO220-5

Data Sheet

0-2300: $1.71
LT1010CT#06PBF
LT1010CT#06PBF


IC BUFFER HI-SPEED 150MA TO220-5

Data Sheet

0-500: $1.71
LT1010CT#31
LT1010CT#31


IC BUFFER HI-SPEED 150MA TO220-5

Data Sheet

0-2050: $1.96
LT1010CT#PBF
LT1010CT#PBF


IC BUFFER HI-SPEED 150MA TO220-5

Data Sheet

0-1: $3.32
1-25: $2.20
25-100: $1.71
LT1010CT-FLOW31
LT1010CT-FLOW31

Linear Technology

IC BUFFER HI-SPEED 150MA TO220-5

Data Sheet

1-500: $1.60
