Product Summary

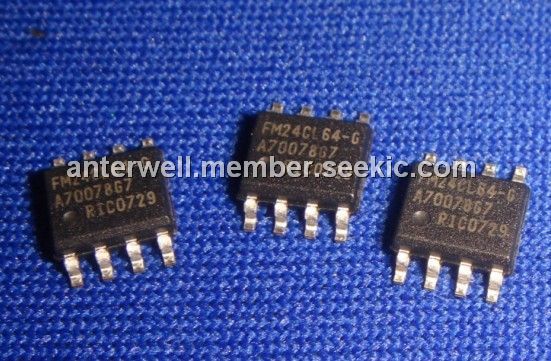

The FM24CL64-G is a 64-kilobit nonvolatile memory employing an advanced ferroelectric process. It provides reliable data retention for 45 years while eliminating the complexities, overhead, and system level reliability problems caused by EEPROM and other nonvolatile memories. The device is available in industry standard 8-pin SOIC and DFN packages using a familiar two-wire protocol. It is guaranteed over an industrial temperature range of -40°C to +85°C.
Parametrics
Absolute maximum ratings: (1) Power Supply Voltage with respect to VSS:-1.0V to +5.0V; (2) Voltage on any pin with respect to VSS:-1.0V to +5.0V and VIN < VDD+1.0V; (3) Storage Temperature:-55°C to +125°C; (4) Lead Temperature (Soldering, 10 seconds):300° C; (5) Electrostatic Discharge Voltage: Human Body Model (JEDEC Std JESD22-A114-B):4kV, Machine Model (JEDEC Std JESD22-A115-A):300V; (6) Package Moisture Sensitivity Level:MSL-1.
Features
Features: (1) Organized as 8,192 x 8 bits; (2) Unlimited Read/Write Cycles; (3) 45 year Data Retention; (4) NoDelay Writes; (5) Advanced High-Reliability Ferroelectric Process; (6) Up to 1 MHz maximum bus frequency; (7) Direct hardware replacement for EEPROM; (8) Supports legacy timing for 100 kHz & 400 kHz; (9) True 2.7V-3.6V Operation; (10) 75uA Active Current (100 kHz); (11) 1uA Standby Current; (12) Industrial Temperature -40°C to +85°C; (13) 8-pin SOIC and 8-pin DFN Packages; (14)“Green” Packaging Options.

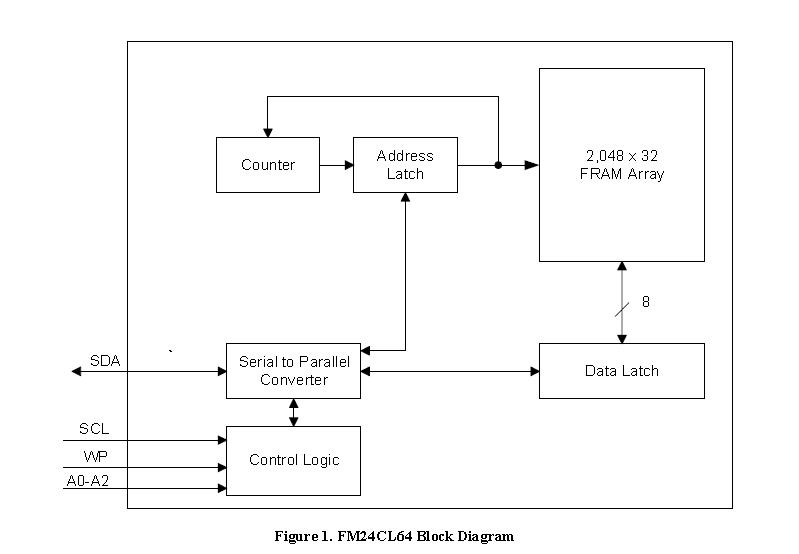

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 FM24CL64-G |
Ramtron |
F-RAM 64K (8Kx8) 2.7V |
Data Sheet |
Negotiable |
|
||||
|
FM24CL64-GTR |
Ramtron |
F-RAM 64K (8Kx8) 2.7V |
Data Sheet |
Negotiable |
|
||||
