Product Summary

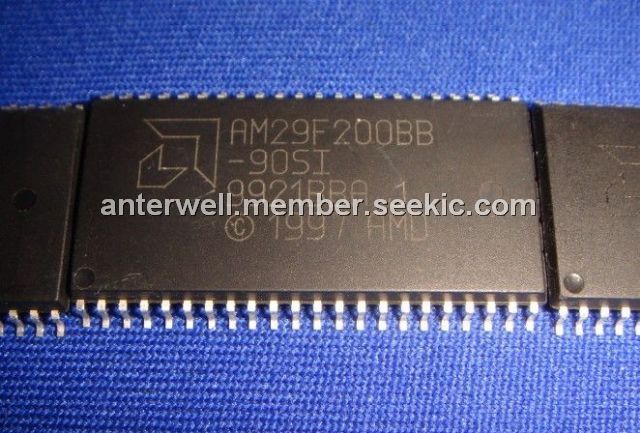

The AM29F200BB-90SI is a 2 Mbit, 5.0 Volt-only Flash memory organized as 262,144 bytes or 131,072 words. It is offered in 44-pin SO and 48-pin TSOP packages. The device is also available in Known Good Die (KGD) form. The device is manufactured using AMD’s 0.32 μm process technology, and offers all the features and benefits of the Am29F200A, which was manufactured using 0.5 μm process technology.
Parametrics
Absolute maximum ratings: (1) Storage Temperature: Plastic Packages:–65°C to +150°C; (2) Ambient Temperature with Power Applied:–55°C to +125°C; (3) Voltage with Respect to Ground: VCC:–2.0 V to +7.0 V, A9, OE#, and RESET#:–2.0 V to +12.5 V, All other pins:–0.5 V to +7.0 V; (4) Output Short Circuit Current: 200 mA.
Features
Features: (1) 5.0 V for read and write operations; (2) Manufactured on 0.32 μm process technology; (3) High performance; (4) Low power consumption; (5) Sector erase architecture; (6) Top or bottom boot block configurations available; (7) Embedded Algorithms; (8) Minimum 1,000,000 write/erase cycles guaranteed; (9) 20-year data retention at 125°C; (10) Compatible with JEDEC standards; (11) Erase Suspend/Erase Resume.

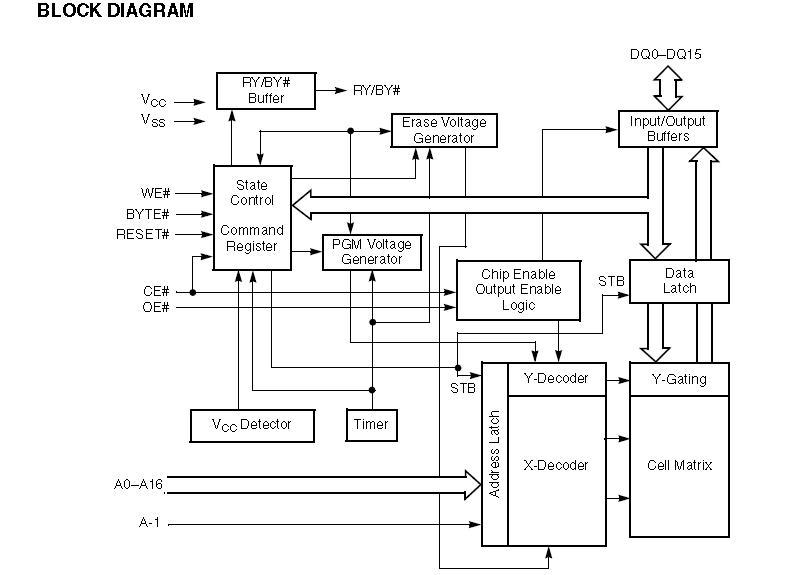

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 AM29F200BB-90SI |
Other |
|
Data Sheet |
Negotiable |
|
||||
