Product Summary

The AD637JRZ is a complete, high accuracy, monolithic rms-to-dc converter that computes the true rms value of any complex waveform. The AD637JRZ offers performance that is unprecedented in integrated circuit rms-to-dc converters and comparable to discrete and modular techniques in accuracy, bandwidth, and dynamic range. The AD637JRZ is laser wafer trimmed to achieve rated performance without external trimming. The only external component required is a capacitor that sets the averaging time period.

Parametrics

AD637JRZ absolute maximum ratings: (1)ESD Rating:500V ; (2)Supply Voltage:±18 Vdc ; (3)Internal Quiescent Power Dissipation:108mW ; (4)Output Short-Circuit Duration:Indefinite ; (5)Storage Temperature Range:-65℃ to +150℃; (6)Lead Temperature (Soldering 10 sec):300℃; (7)Rated Operating Temperature Range:0℃ to 70℃.

Features

AD637JRZ features: (1)High accuracy:0.02% maximum nonlinearity, 0 V to 2 V rms input, 0.10% additional error to crest factor of 3 ; (2)Wide bandwidth:8 MHz at 2 V rms input, 600 kHz at 100 mV rms ; (3)Computes:True rms, Square, Mean square, Absolute value ; (4)dB output (60 dB range) ; (5)Chip select/power-down feature allows: Analog three-state operation, Quiescent current reduction from 2.2 mA to 350 μA ; (6)14-lead SBDIP, 14-lead low cost CERDIP, and 16-lead SOIC_W.

Diagrams

AD637JRZ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

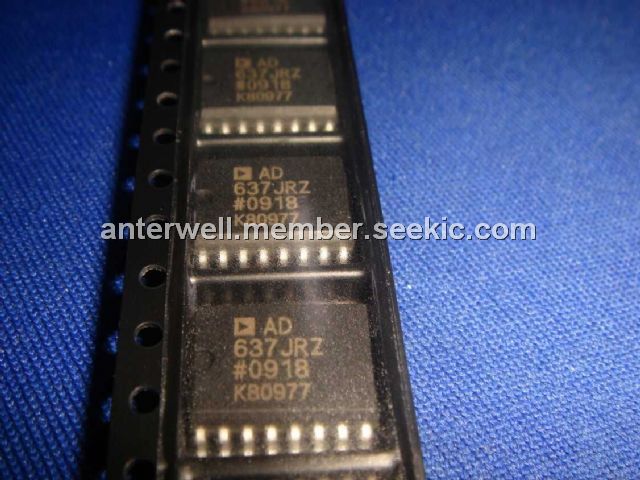

AD637JRZ
AD637JRZ


IC RMS/DC CONV PREC WB 16-SOIC

Data Sheet

0-1: $11.66
1-10: $10.79
10-100: $9.21
100-250: $8.46
250-500: $8.05
500-1000: $7.78
AD637JRZ-R7
AD637JRZ-R7


IC RMS/DC CONV PREC WB 16SOIC

Data Sheet

0-1: $12.01
1-10: $11.14
10-25: $10.21
25-100: $9.51
AD637JRZ-RL
AD637JRZ-RL


IC RMS/DC CONV PREC WB 16SOIC TR

Data Sheet

0-1000: $7.78
