Product Summary

The AD9760ARZ is a high performance, low power CMOS digital-to-analog converter. It shares the same interface options, small outline package and pinout, thus providing an upward or downward component selection path based on performance, resolution and cost. The AD9760ARZ that consists of pin compatible 8-, 10-, 12- and 14-bit DACs is specifically optimized for the transmit signal path of communication systems. The applications of the AD9760ARZ are Basestations, Set Top Boxes, Digital Radio Link, Direct Digital Synthesis (DDS), Instrumentation.

Parametrics

AD9760ARZ absolute maximum ratings: (1)AVDD:–0.3V to +6.5V; (2)DVDD:–0.3V to +6.5V; (3)ACOM:–0.3V to +0.3V; (4)AVDD:–6.5V to +6.5V; (5)CLOCK, SLEEP:–0.3V to DVDD + 0.3V; (6)Digital Inputs:–0.3V to DVDD + 0.3V; (7)IOUTA, IOUTB:–1.0V to AVDD + 0.3V; (8)COMP1, COMP2:–0.3V to AVDD + 0.3V; (9)REFIO, FSADJ:–0.3V to AVDD + 0.3V; (10)REFLO:–0.3V to +0.3V; (11)Junction Temperature:+150℃; (12)Storage Temperature:–65℃ to +150℃; (13)Lead Temperature(10 sec):+300℃.

Features

AD9760ARZ features: (1)Member of Pin-Compatible TxDAC Product Family; (2)125 MSPS Update Rate; (3)10-Bit Resolution; (4)Excellent Spurious Free Dynamic Range Performance; (5)SFDR to Nyquist @ 40 MHz Output: 52 dBc; (6)Differential Current Outputs: 2 mA to 20 mA; (7)Power Dissipation: 175 mW @ 5 V to 45mW @ 3 V; (8)Power-Down Mode: 25 mW @ 5 V; (9)On-Chip 1.20 V Reference; (10)Single +5 V or +3 V Supply Operation; (11)Packages: 28-Lead SOIC and TSSOP; (12)Edge-Triggered Latches.

Diagrams

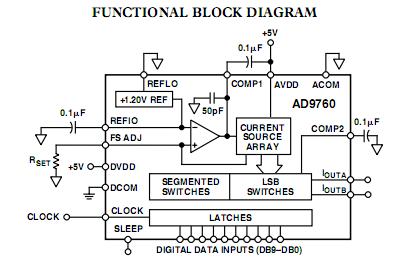

AD9760ARZ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

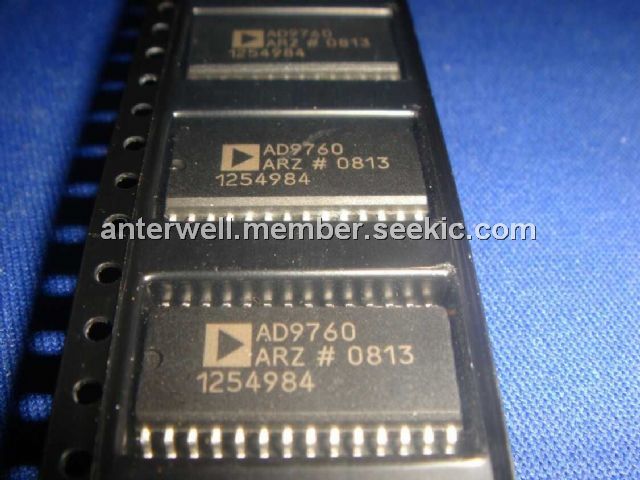

AD9760ARZ
AD9760ARZ


IC DAC 10BIT 125MSPS 28-SOIC

Data Sheet

0-27: $5.11
AD9760ARZ50
AD9760ARZ50


IC DAC 10BIT 50MSPS 28-SOIC

Data Sheet

0-1: $6.01
1-10: $5.46
10-100: $4.65
100-250: $4.24
250-500: $3.96
500-1000: $3.64
AD9760ARZ50RL
AD9760ARZ50RL


IC DAC 10BIT 125MSPS 28TSSOP

Data Sheet

0-1000: $3.64
AD9760ARZRL
AD9760ARZRL


IC DAC 10BIT 125MSPS 28-SOIC

Data Sheet

0-1000: $3.69
