Product Summary

The AD767JN is a complete voltage output 12-bit digital-to-analog converter including a high stability buried Zener reference and input latch on a single chip. The AD767JN uses 12 precision high-speed bipolar current steering switches and a laser-trimmed thin-film resistor network to provide high accuracy. The functional completeness and high performance of the AD767JN result from a combination of advanced switch design, high-speed bipolar manufacturing process, and the proven laser wafer-trimming (LWT) technology.

Parametrics

AD767JN absolute maximum ratings: (1)VCC to Power Ground:0 V to +18 V; (2)VEE to Power Ground:0 V to –18 V; (3)Digital Inputs (Pins 11, 13–24) to Power Ground:–1.0V to +7.0V; (4)Ref In to Reference Ground:±12 V; (5)Bipolar Offset to Reference Ground:±12 V; (6)10 V Span R to Reference Ground:±12 V; (7)20 V Span R to Reference Ground:±24 V.

Features

AD767JN features: (1)Complete 12-Bit D/A Function; (2)On-Chip Output Amplifier; (3)High Stability Buried Zener Reference; (4)Fast 40 ns Write Pulse; (5)0.3” Skinny DIP and PLCC Packages; (6)Single Chip Construction; (7)Monotonicity Guaranteed Over Temperature; (8)Settling Time: 3 ms max to 1/2 LSB; (9)Guaranteed for Operation with 612 V or 615 V Supplies; (10)TTL/5 V CMOS Compatible Logic Inputs; (11)MIL-STD-883 Compliant Versions Available.

Diagrams

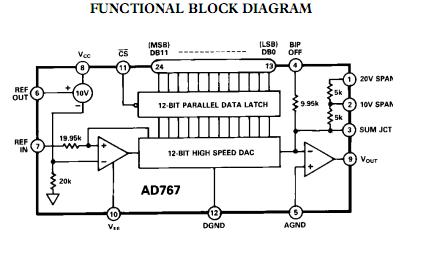

AD767JN block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

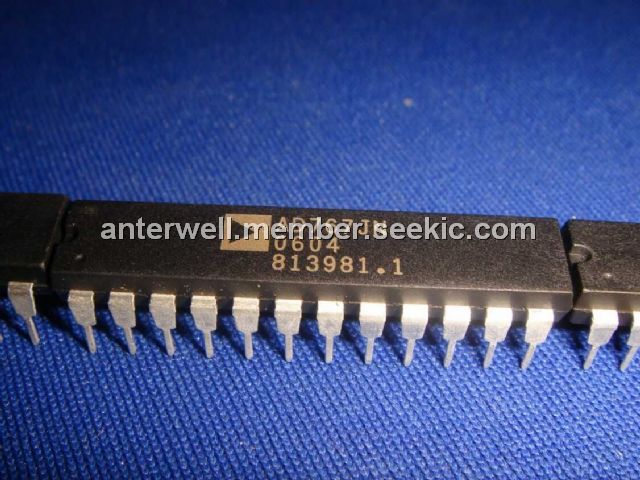

AD767JN
AD767JN


IC DAC 12BIT 24-DIP

Data Sheet

0-15: $13.58
AD767JNZ
AD767JNZ


IC DAC 12BIT 24-DIP

Data Sheet

0-1: $13.37
1-10: $12.37
10-100: $10.56
100-250: $9.69
250-500: $9.23
500-1000: $8.91
