Product Summary

The MT48LC16M16A2P-7E is a high-speed CMOS, dynamic random-access memory containing 268,435,456 bits. It is internally configured as a quadbank DRAM with a synchronous interface (all signals are registered on the positive edge of the clock signal, CLK). Each of the x4’s 67,108,864-bit banks is organized as 8,192 rows by 2,048 columns by 4 bits. Each of the x8’s 67,108,864-bit banks is organized as 8,192 rows by 1,024 columns by 8 bits.

Parametrics

Absolute maximum ratings: (1)Voltage on VDD, VDDQ Supply; (2)Relative to VSS: -1V to +4.6V; (3)Voltage on Inputs, NC or I/O Pins Relative to VSS: -1V to +4.6V; (4)Operating Temperature, TA (commercial): 0°C to +70°C; (5)Operating Temperature,TA (industrial “IT”): -40°C to +85°C; (6)Storage Temperature (plastic): -55°C to +150°C; (7)Power Dissipation: 1W.

Features

Features: (1)Fully synchronous; all signals registered on positive edge of system clock; (2)Internal pipelined operation; column address can be changed every clock cycle; (3)Internal banks for hiding row access/precharge; (4)Programmable burst lengths: 1, 2, 4, 8, or full page.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

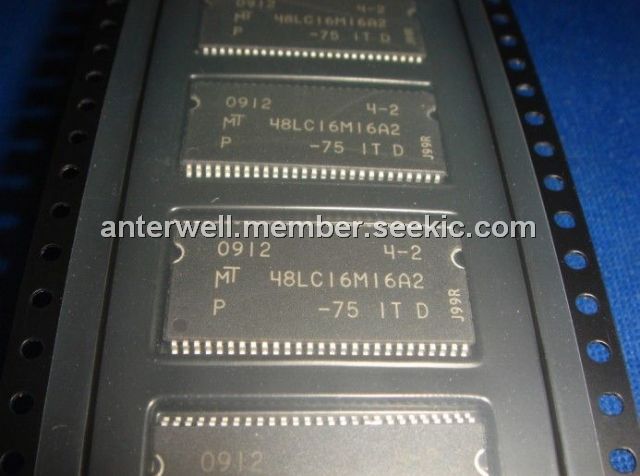

MT48LC16M16A2P-7E IT:D
MT48LC16M16A2P-7E IT:D


IC SDRAM 256MBIT 133MHZ 54TSOP

Data Sheet

0-1000: $3.06
MT48LC16M16A2P-7E IT:D TR
MT48LC16M16A2P-7E IT:D TR


IC SDRAM 256MBIT 133MHZ 54TSOP

Data Sheet

0-1: $4.69
1-10: $4.32
10-25: $4.23
25-50: $4.21
50-100: $3.78
100-250: $3.66
250-500: $3.48
MT48LC16M16A2P-7E L:D TR
MT48LC16M16A2P-7E L:D TR


IC SDRAM 256MBIT 133MHZ 54TSOP

Data Sheet

0-1000: $3.18
MT48LC16M16A2P-7E L:D
MT48LC16M16A2P-7E L:D


IC SDRAM 256MBIT 133MHZ 54TSOP

Data Sheet

0-1000: $3.18
MT48LC16M16A2P-7E:D TR
MT48LC16M16A2P-7E:D TR


IC SDRAM 256MBIT 133MHZ 54TSOP

Data Sheet

0-1: $4.48
1-10: $4.09
10-25: $4.01
25-50: $3.98
50-100: $3.57
100-250: $3.56
250-500: $3.34
MT48LC16M16A2P-7E:D
MT48LC16M16A2P-7E:D


IC SDRAM 256MBIT 133MHZ 54TSOPII

Data Sheet

0-1000: $2.90
