Product Summary
The MAX232 family of line drivers/receivers is intended for all EIA/TIA-232E and V.28/V.24 communications interfaces, particularly applications where ±12V is not available. The MAX232CSE belongs to MAX232 series. These parts are especially useful in battery-powered systems, since their low-power shutdown mode reduces power dissipation to less than 5μW.
Parametrics
The absolute maximum ratings of the MAX232CSE can be summarized as:(1):The parameter is supply voltage (VCC),the rating is -0.3 to +6,the unit is V;(2):The parameter is input voltages Tin,the rating is -0.3 to (Vcc-0.3),the unit is V;(3):The parameter is output voltages TOUT,ROUT,the rating is ±15,-0.3 to (Vcc +0.3),the unit is V;(4):The parameter is driver/receiver output short circuited to GND,the rating is continuous;(5):The parameter is operating temperature ranges,the rating is 0 to +70,the unit is ℃;(6):The parameter is storage temperature ranges,the rating is -65 to +160,the unit is ℃;(7):The parameter is lead temperature (soldering,10sec),the rating is +300,the unit is ℃.
Features
Features of the MAX232CSE are:(1)operate from single +5V power supply;(2)meet all EIA/TIA-232E and V.28 specifications;(3)multiple drivers and receivers;(4)3-state driver and receiver outputs.

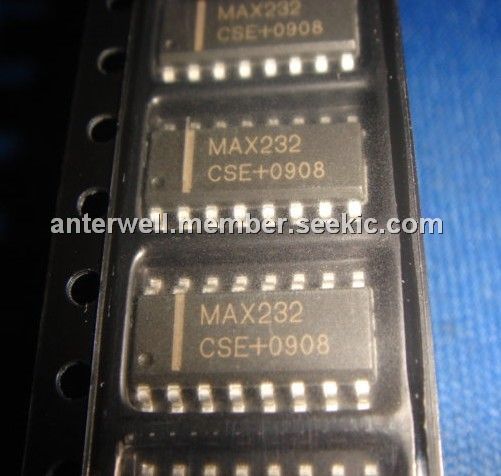

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX232CSE |
Maxim Integrated Products |
RS-232 Interface IC |
Data Sheet |
Negotiable |
|
||||||||||||
 |
MAX232CSE+ |
Maxim Integrated Products |
RS-232 Interface IC 5V MultiCh RS-232 Driver/Receiver |
Data Sheet |
|
|
||||||||||||
|
MAX232CSE+T |
Maxim Integrated Products |
RS-232 Interface IC 5V MultiCh RS-232 Driver/Receiver |
Data Sheet |
|
|
||||||||||||
|
MAX232CSE-T |
Maxim Integrated Products |
RS-232 Interface IC |
Data Sheet |
Negotiable |
|
||||||||||||
