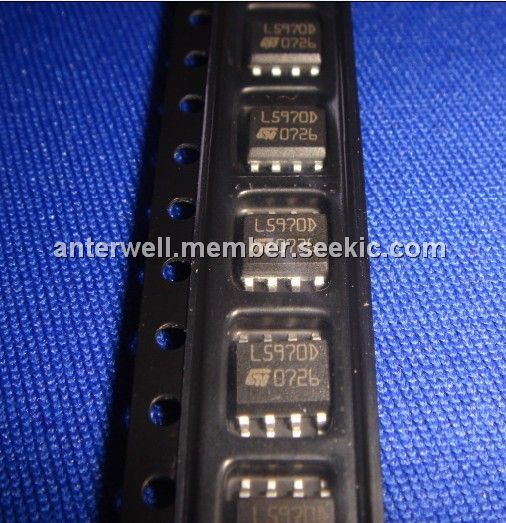

Product Summary

The L5970D013TR is a step down monolithic power switching regulator capable to deliver up to 1A at output voltages from 1.2V to 35V. The device uses an internal P-Channel D-MOS transistor (with a typical Rdson of 250m) as switching element to minimize the size of the external components. Having a minimum input voltage of 4.4V only, it is particularly suitable for 5V bus, available in all computer related applications.

Parametrics

Absolute maximum ratings: (1)Input Voltage: 40 V; (2)Output DC voltage: -1 to 40 V; (3)Output peak voltage at t = 0.1μs: -5 to 40 V; (4)Maximum output current: int. limit.; (5)Analog pins: 4 V; (6)INH: -0.3V to VCC; (7)SYNC: -0.3 to 4 V; (8)Power dissipation at Tamb ≤ 60°C: 0.75 W; (9)Operating junction temperature range: -40 to 150 °C; (10)Storage temperature range: -55 to 150 °C.

Features

Features: (1)up to 1A output current; (2)operating input voltage from 4.4V to 36V; (3)3.3V / (±2%) / reference voltage; (4)output voltage adjustable from 1.2V TO 35V; (5)low dropout operation: 100% duty cycle; (6)250KHz internally fixed frequency; (7)voltage feedforward.

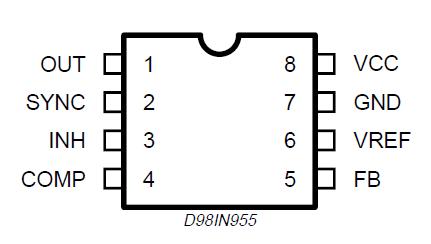

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
L5970D013TR
L5970D013TR
STMicroelectronics
Switching Converters, Regulators & Controllers 1.2 to 35V Step-Down
Data Sheet
0-1: $1.51
1-25: $1.39
25-100: $1.26
100-250: $1.15
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
L5970D013TR
L5970D013TR
STMicroelectronics
Switching Converters, Regulators & Controllers 1.2 to 35V Step-Down
Data Sheet
0-1: $1.51
1-25: $1.39
25-100: $1.26
100-250: $1.15
L5973D013TR
L5973D013TR
STMicroelectronics
Switching Converters, Regulators & Controllers 2.5 A Step-DN Switching Reg
Data Sheet
0-1: $1.90
1-25: $1.67
25-100: $1.40
100-250: $1.36
L5973D
L5973D
STMicroelectronics
Switching Converters, Regulators & Controllers 1.235 to 35V Step-Dn
Data Sheet
0-1: $1.15
1-10: $1.09
10-100: $1.00
100-250: $0.97
L5973ADTR
L5973ADTR
STMicroelectronics
Switching Converters, Regulators & Controllers 1.235 to 35V Step-Dn
Data Sheet
0-1: $1.51
1-25: $1.39
25-100: $1.32
100-250: $1.15
L5973AD
L5973AD
STMicroelectronics
Switching Converters, Regulators & Controllers 1.235 to 35V Step-Dn
Data Sheet
0-1: $1.51
1-10: $1.27
10-100: $1.15
100-250: $1.04
L5972D013TR
L5972D013TR
STMicroelectronics
Switching Converters, Regulators & Controllers 1.235 to 35V Step-Dn
Data Sheet
0-1: $1.41
1-25: $1.23
25-100: $1.15
100-250: $1.09
