Product Summary
The XC9572XL-10VQG44C is a 3.3V CPLD targeted for high-performance, low-voltage applications in leading-edge communications and computing systems. It is comprised of four 54V 18 Function Blocks, providing 1,600 usable gates with propagation delays of 5 ns. Power dissipation in CPLDs can vary substantially depending on the system frequency, design application and output loading.
Parametrics
Absolute maximum ratings:(1)Supply voltage relative to GND, VCC: –0.5 to 4.0V; (2)Input voltage relative to GND, VIN: –0.5 to 5.5V; (3)Voltage applied to 3-state output, VTS: –0.5 to 5.5V; (4)Storage temperature (ambient), TSTG: –65 to +150℃; (5)Junction temperature, TJ: +150℃.
Features
Features: (1)5 ns pin-to-pin logic delays; (2)System frequency up to 178 MHz; (3)72 macrocells with 1,600 usable gates; (4)Available in small footprint packages; (5)Optimized for high-performance 3.3V systems; (6)Fast concurrent programming; (7)Slew rate control on individual outputs; (8)Enhanced data security features; (9)Excellent quality and reliability; (10)Pin-compatible with 5V-core XC9572 device in the 44-pin PLCC package and the 100-pin TQFP package.

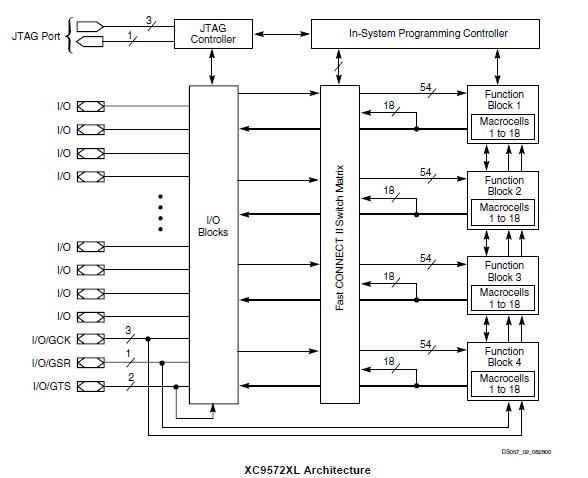

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

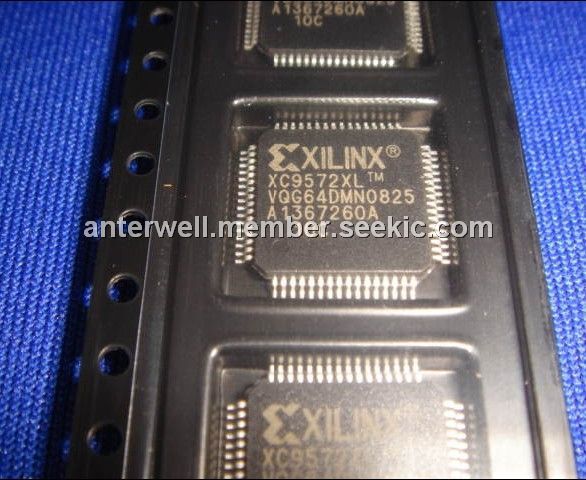

XC9572XL-10VQG44C |
IC CPLD 72MCRCELL 10NS 44VQFP |
Data Sheet |
|
|
||||||||||||||||||
