Product Summary

The BCM5221 includes a unique Intelligent Power-Management feature that powers down the device if energy is not detected on the cable. This feature is especially useful for portable and power-sensitive applications such as laptop LAN card adapters. The BCM5221 allows PCMCIA or CardBus adapters to remain plugged in and draw virtually no energy even if the client is no longer connected to the network. Because most laptop users do not remove their LAN PC card when working remotely, this feature results in a noticeably extended battery life for laptop computer users.

Features

? Power Supply: 2.5V or 3.3V
? Integrated voltage regulator to allow operation from a single supply source
? Power Consumption: <175 mW
? Unique energy detection circuit to enable intelligent power management
? HP Auto-MDIX
? Cable length indication
? Cable noise level indication
? Robust CESD tolerance
? Cable length greater than 145 meters
? Well under 10 PPM defect ratio quality
? ±10% voltage tolerance
? Industrial temperature range (–40°C to 85°C) package options available
? MII and RMII configurable
? IEEE 1149.1 (JTAG) scan chain support
? MII management via serial port
? Layout compatible with BCM5201
? 10BASE-T/100BASE-TX/FX IEEE 802.3u Fast Ethernet transceiver
? Glueless TX-to-FX media conversion
? 64-pin TQFP with 64-pin BGA package, 48-pin KML package; RoHS 5/6 and 6/6 package options available

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

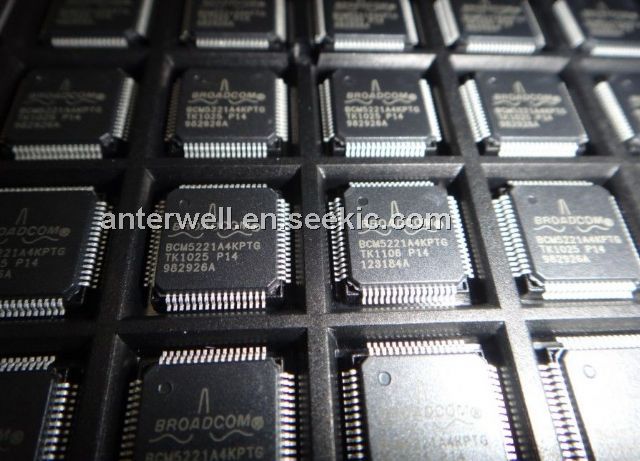

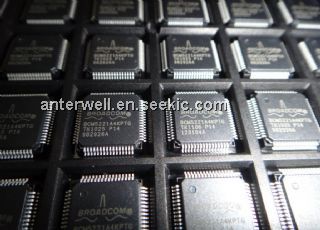

BCM5221A4KPTG/ROHS
BCM5221A4KPTG/ROHS
Other

Data Sheet
Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BCM5208
BCM5208
Other

Data Sheet
Negotiable
BCM5208R
BCM5208R
Other

Data Sheet
Negotiable
BCM5221
BCM5221
Other

Data Sheet
Negotiable
BCM5221A2KPTG/ROHS
BCM5221A2KPTG/ROHS
Other

Data Sheet
Negotiable
BCM5221A4KPTG/ROHS
BCM5221A4KPTG/ROHS
Other

Data Sheet
Negotiable
BCM5222
BCM5222
Other

Data Sheet
Negotiable
