Product Summary

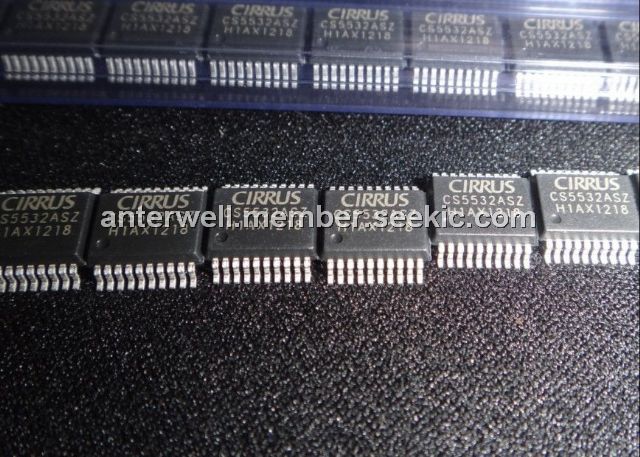

The CS5532ASZ is highly integrated △Σ Analog-to-Digital Converter (ADC) which uses charge-balance techniques to achieve 24-bit performance. The CS5532ASZ is optimized for measuring low-level unipolar or bipolar signals in weigh scale, process control, scientific, and medical applications. To accommodate these applications, the CS5532ASZ comes as either two-channel devices and includes a very low noise chop-per-stabilized instrumentation amplifier (6 nV/√Hz @ 0.1Hz) with selectable gains of 1×, 2×, 4×, 8×, 16×, 32×, and64×.
Parametrics
CS5532ASZ absolute maximum ratings: (1) DC Power Supplies: Positive Digital VD+: -0.3 to +6.0V, Positive Analog VA+: -0.3 to +6.0V, Negative Analog VA-: +0.3V to -3.75V; (2) Input Current,Any Pin Except Supplies Iin: ±10mA; (3)Output Current: Iout: ±25mA; (4) Power Dissipation: PDN: 500mW; (5) Analog Input Voltage: VREF pins Vinr (VA-) -0.3V, (VA+) +0.3V; AIN Pins Vina (VA-) -0.3V (VA+) +0.3V; (6) Digital Input Voltage: VIND -0.3V (VD+) +0.3V; (7) Ambient Operating Temperature: TA -40°C to 85°C; (8) StorageTemperature Tstg: -65°C to 150°C.
Features
CS5532ASZ features: (1) Chopper Stabilized PGIA (Programmable Gain Instrument ation Amplifier, 1xto64x) , 6nV/Hz @0.1Hz (No1/fnoise) at 64x, 500pA Input Current with Gains>1; (2) Delta-SigmaAnalog-to-Digital Converter Linearity Error: 0.0007%FS,Noise Free Resolution: Up to 23bits; (3) Two or Four Channel Differential MUX; (4) Scalable Input Span via Calibration: ±5mV to differential to ±2.5V; (5) Scalable Vref Input: Up to Analog Supply; (6) R/W Calibration Registers Per Channel; (7) Selectable Word Rates: 6.25 to 3,840 Sp; (8) Selectable 50 or 60Hz Rejection; (9)Power Supply Configurations.

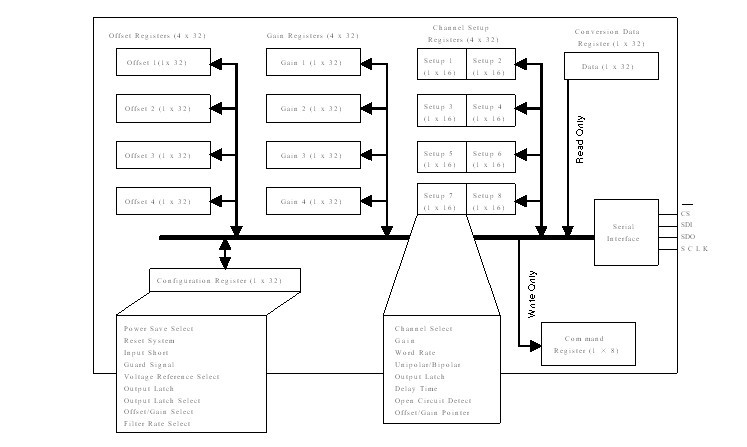

Diagrams
 |
