Product Summary

The L7808CV is a positive voltage regulator. The L7808CV regulator can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. If adequate heat sinking is provided, the L7808CV delivers over 1A output current. Although designed primarily as fixed voltage regulator the L7808CV can be used with external components to obtain adjustable voltage and currents.

Parametrics

L7808CV absolute maximum ratings: (1) DC Input Voltage Vi: 35V (for Vo = 5 to 18V), 40V (for Vio=20, 24V) ; (2) Output Current Io: Internally Limited; (3) Power Dissipation Ptot: Internally Limited; (4) Storage Temperature Range Tstg: -65 to 150°C.

Features

L7808CV features: (1) output current to 1.5A; (2) output voltage of 5; 5.2; 6; 8; 8.5; 9; 0; 12; 15; 18; 24V; (3) thermal overload pretection; (4) short circuit protection; (5) output transition SOA protection.

Diagrams

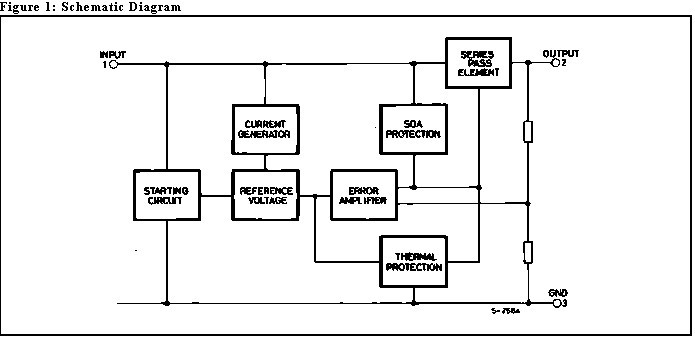

L7808CV Schematic Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
L7808CV
L7808CV
STMicroelectronics
Linear Regulators - Standard 8.0V 1.0A Positive
Data Sheet
0-1: $0.40
1-10: $0.34
10-100: $0.26
100-250: $0.22
L7808CV-DG
L7808CV-DG
STMicroelectronics
Linear Regulators - Standard Precision 1.5A Reg 24V Out Dual Gauge
Data Sheet
0-1800: $0.17
1800-2000: $0.14
2000-5000: $0.13
5000-10000: $0.12
