Product Summary

The ATF22V10B-15PC is a high-performance CMOS (electrically-erasable) programmable logic device (PLD). The ATF22V10B-15PC utilizes Atmel’s proven electrically-erasable Flash memory technology. Speeds down to 7.5 ns and power dissipation as low as 10 mA are offered. Several low-power options allow selection of the best solution for various types of power-limited applications. Each of these options significantly reduces total system power and enhances system reliability.

Parametrics

ATF22V10B-15PC absolute maximum ratings: (1)Temperature Under Bias:-55℃ to +125℃; (2)Storage Temperature:-65℃ to +150℃; (3)Voltage on Any Pin with Respect to Ground:-2.0V to +7.0V; (4)Voltage on Input Pins with Respect to Ground During Programming:-2.0V to +14.0V; (5)Programming Voltage with Respect to Ground:-2.0V to +14.0V.

Features

ATF22V10B-15PC features: (1)Industry Standard Architecture: Low-cost Easy-to-use Software Tools; (2)High-speed, Electrically-erasable Programmable Logic Devices: 7.5 ns Maximum Pin-to-pin Delay; (3)Several Power Saving Options; (4)CMOS and TTL Compatible Inputs and Outputs: Input and I/O Pull-up Resistors; (5)Advanced Flash Technology: Reprogrammable, 100% Tested ; (6)High-reliability CMOS Process: 20-year Data Retention, 100 Erase/Write Cycles, 2,000V ESD Protection, 200 mA Latchup Immunity; (7)Full Military, Commercial, and Industrial Temperature Ranges; (8)Dual-in-line and Surface Mount Packages in Standard Pinouts; (9)PCI Compliant.

Diagrams

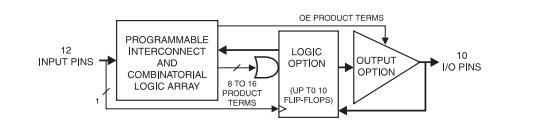

ATF22V10B-15PC block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

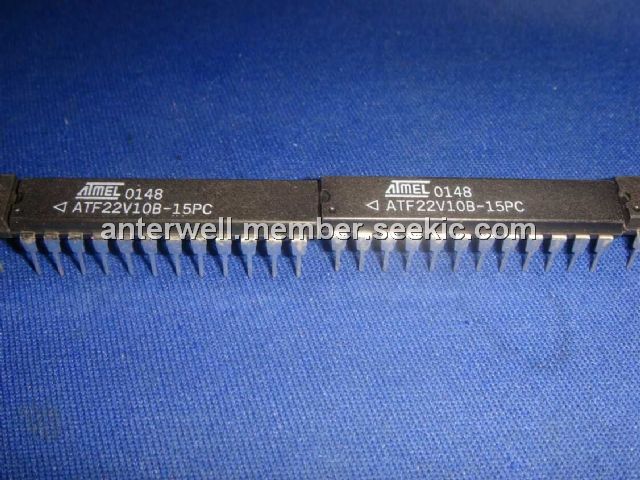

ATF22V10B-15PC
ATF22V10B-15PC

Atmel

SPLD - Simple Programmable Logic Devices 500 Gate

Data Sheet

Negotiable
