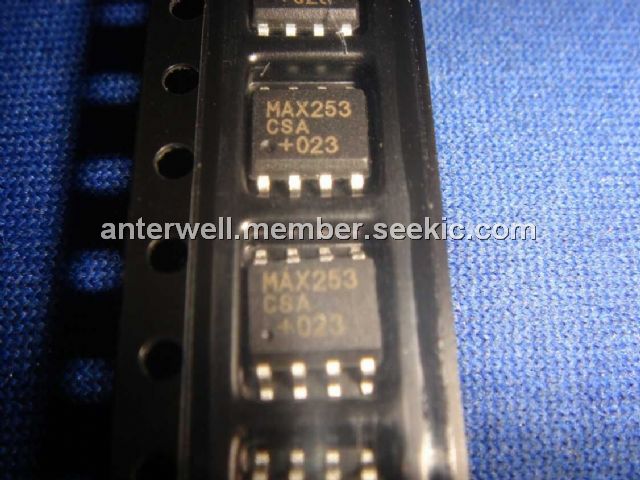

MAX253CSA

monolithic oscillator/power-driver, SOP8, -0.3V to +7V, 727mW, Low-Current Shutdown Mode, 200mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.25~1.45 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.25~1.45

PartNumber:: MAX253CSA

Brand:: Maxim Integrated Products - Maxim | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ellen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-07

From Other Seller

Part Number:MAX253CSA
US $1.25 - 1.45
SIL9030CTU

US $2.50 - 5.10 / Piece
(0) Remove
PIC16F917-I/P(PIC16F917-IP)

US $1.60 - 2.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MAX253CSA is a monolithic oscillator/power-driver. The device is specifically designed to provide isolated power for an isolated RS-485 or RS-232 data interface. The MAX253CSAe drives a center-tapped transformer primary from a 5V or 3.3V DC power supply. The secondary can be wound to provide any isolated voltage needed at power levels up to 1W. The applications of the MAX253CSA include Isolated RS-485/RS-232 Power-Supply, Transformer Driver, High Noise-Immunity Communications Interface, Isolated and/or High-Voltage Power Supplies, Bridge Ground Differentials, Medical Equipment and Process Control.

Parametrics

MAX253CSA absolute maximum ratings: (1)Supply Voltage (VCC): -0.3V to +7V; (2)Control Input Voltages (SD, FS): -0.3V to (VCC + 0.3V); (3)Output Switch Voltage (D1, D2): 12V; (4)Peak Output Switch Current (D1, D2): 1A; (5)Average Output Switch Current (D1, D2): 200mA; (6)Continuous Power Dissipation: 727mW; (7)Operating Temperature Ranges: 0℃ to +70℃; (8)Junction Temperatures: +150℃; (9)Storage Temperature Range: -65℃ to +160℃; (10)Lead Temperature (soldering, 10s): +300℃; (11)Soldering Temperature (reflow): +260℃; (12)PDIP, SO, μMAX, CERDIP containing lead(Pb): +240℃.

Features

MAX253CSA features: (1)Power-Supply Transformer Driver for Isolated RS-485/RS-232 Data-Interface Applications; (2)Single 5V or 3.3V Supply; (3)Low-Current Shutdown Mode: 0.4μA; (4)Pin-Selectable Frequency: 350kHz or 200kHz; (5)8-Pin DIP, SO, and μMAX? Packages.
