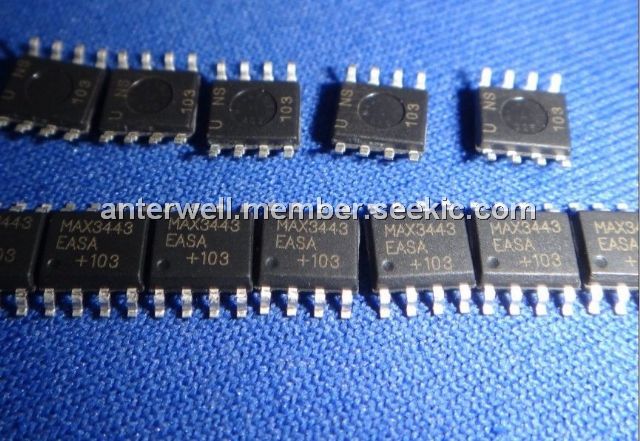

MAX3443EASA

transceiver, ±60V, 10Mbps, ±15kV, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.35~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.35~1.50

PartNumber:: MAX3443EASA

Brand:: Maxim Integrated Products - Maxim | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ellen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:MAX3443EASA
US $1.35 - 1.50
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
SIL9030CTU

US $2.50 - 5.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

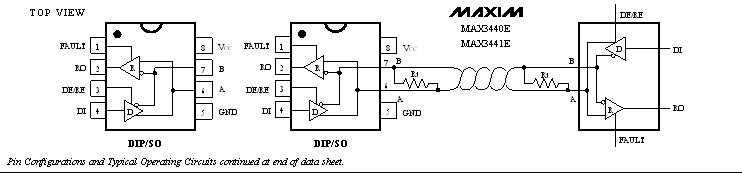

The MAX3443EASA fault-protected RS-485 andJ1708 transceiver features ±60V protection from signalfaults on communication bus lines. The MAX3443EASA contains one differential line driver with three-state output and one differential line receiver with three-state input. The MAX3443EASA operates from a 5V supply at data rates of up to 10Mbps. Applications of the MAX3443EASA include: RS-422/RS-485 Communications, Truck and Trailer Applications, Industrial Networks, Telecommunications Systems, Automotive Applications, HVAC Controls.

Parametrics

MAX3443EASA aboslute maximum ratings: (1) Voltages Referenced to GND Vcc: +7V; (2) FAULT, DE/RE, RE, DE, DE, DI, TXD: -0.3V to (Vcc +0.3V); (3) A, B (Note 1) : ±60V; (4) RO: -0.3V to (Vcc +0.3V); (5) Short-Circuit Duration (RO, A, B) : Continuous; (6) Continuous Power Dissipation (Ta=+70°C) : 8-Pin SO (derate 5.9mW/°C above +70°C) 471mW; (7) Operating Temperature Ranges: -40°C to +125°C; (8) Storage Temperature Range: -65°C to 150°C; (9) Junction Temperature: +150°C; (10) Lead Temperature (soldering, 10s) : +300°C.

Features

MAX3443EASA features: (1) ±15kV ESD Protection; (2) ±60V Fault Protection; (3) Guaranteed 10Mbps Data Rate; (4) Hot Swappable for Telecom Applications; (5) True Fail-Safe Receiver Inputs; (6) Enhanced Slew-Rate-Limiting Facilitates, Error-Free Data Transmission; (7) Allow Up to 128 Transceivers on the Bus; (8) Automotive Temperature Range (-40°C to +125°C) ; (9) Industry-Standard Pinout.
