Product Summary
The Xicor X9C102SI is a solid state nonvolatile potentiometer and is ideal for digitally controlled resistance trimming. The X9C102SI is a resistor array composed of 99 resistive elements. Between each element and at either end are tap points accessible to the wiper element.
Parametrics
X9C102SI absolute maximum ratings: (1)Temperature under Bias: –65℃ to +135℃; (2)Storage Temperature: –65℃ to +150℃; (3)Voltage on CS, INC, U/D and VCC with Respect to VSS: –1V to +7V; (4)Voltage on VH and VL Referenced to VSS DV = |VH–VL|: –8V to +8V; (5)Lead Temperature (Soldering 10 seconds): 300℃; (6)Wiper Current: ±1mA.
Features
X9C102SI features: (1)Compatible with X9102/103/104/503; (2)Low Power CMOS: VCC = 5V, Active Current, 3mA Max, Standby Current, 500mA Max; (3)99 Resistive Elements: Temperature Compensated, ±20% End to End Resistance Range; (4)100 Wiper Tap Points: Wiper Positioned via Three-Wire Interface, Similar to TTL Up/Down Counter, Wiper Position Stored in Nonvolatile Memory and Recalled on Power-Up.

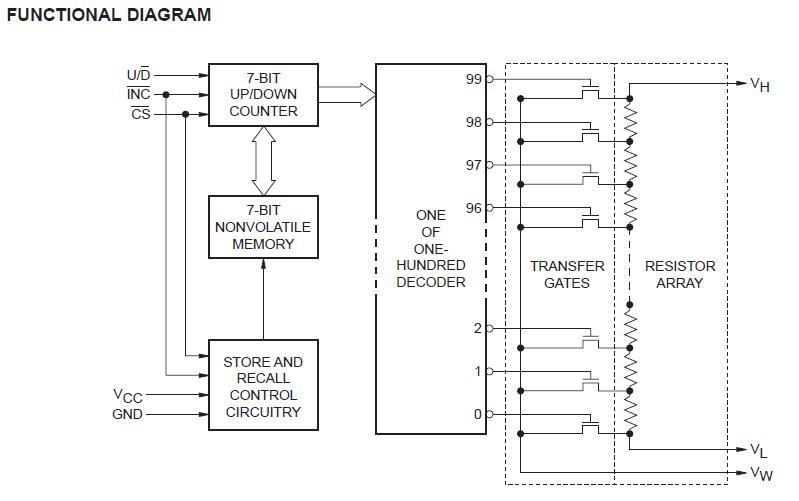

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 X9C102SI |
|
IC DIGITAL POT 1K 100TP 8SOIC |
Data Sheet |
Negotiable |
|
||||||||||||
|
X9C102SIT1 |
|
IC XDCP 100-TAP 1K EE 8-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||
|
X9C102SIZ |
Intersil |
Digital Potentiometer ICs 1K EEPOTTM POT CMOS IND 5V 8LD |
Data Sheet |
|
|
||||||||||||
|
X9C102SIT2 |
|
IC XDCP 100-TAP 1K EE 8-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||
|
X9C102SIZT1 |
|
IC XDCP 100-TAP 1K EE 8-SOIC |
Data Sheet |
|
|
||||||||||||
|
X9C102SIZT2 |
|
IC POT DGTL CONTROL 1K OHM 8SOIC |
Data Sheet |
Negotiable |
|
||||||||||||
