Product Summary
The A6809– and A6810– devices combine 10-bit CMOS shift registers, accompanying data latches and control circuitry with bipolar sourcing outputs and pnp active pull downs. Designed primarily to drive vacuum-fluorescent displays, the 60 V and 40 mA output ratings also allow these devices to be used in many other peripheral power driver applications. The A6809– and A6810– feature an increased data input rate (compared with the older UCN/UCQ5810-F) and a con-trolled output slew rate. The A6809xLW and A6810xLW are identical except for pinout.
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

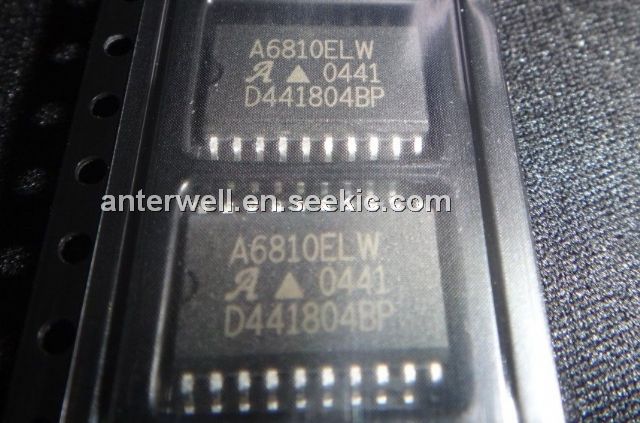

 A6810ELW |
|
IC SOURCE DRVR 10BIT SER 20SOIC |
Data Sheet |
Negotiable |
|
||||||
|
A6810ELW-T |
|
IC SOURCE DRVR 10BIT SER 20SOIC |
Data Sheet |
|
|
||||||
|
A6810ELWTR |
|
IC SOURCE DRVR 10BIT SER 20SOIC |
Data Sheet |
Negotiable |
|
||||||
|
A6810ELWTR-T |
|
IC SOURCE DRVR 10BIT SER 20SOIC |
Data Sheet |
Negotiable |
|
||||||
