Product Summary

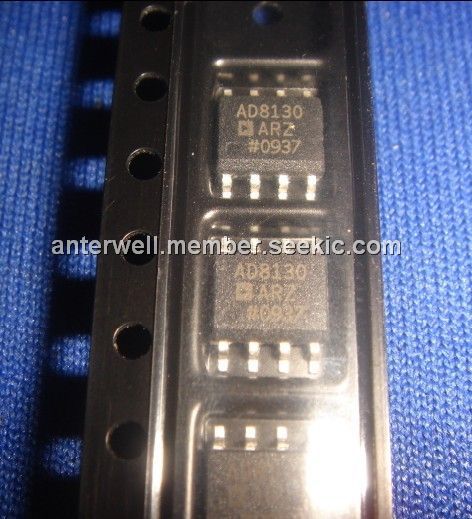

The AD8130ARZ is differential-to-single-ended amplifier with extremely high CMRR at high frequency. It is stable at a gain of 1 and can be used for applications where lower gains are required. Therefore, It can also be effectively used as high speed instrumentation amps or for converting differential signals to single-ended signals.
Parametrics
Absolute maximum ratings: (1) Supply Voltage:26.4 V; (2) Power Dissipation:Refer to Figure 4; (3) Input Voltage (Any Input): -VS -0.3 V to +VS +0.3 V; (4) Differential Input Voltage :±8.4 V; (5) Storage Temperature Range:-65°C to +150°C; (6) Lead Temperature (Soldering, 10 sec):300°C; (7) Junction Temperature:150°C.
Features
Features: (1) High speed:270 MHz, 1090 V/μs @ G = +1; (2) High CMRR:94 dB min, dc to 100 kHz, 80 dB min @ 2 MHz, 70 dB @ 10 MHz; (3) High input impedance: 1 MΩ differential; (4) Input common-mode range ±10.5 V; (5) Low noise:.79 dBc worst harmonic @ 5 MHz; (6) Power supply range +4.5 V to ±12.6 V; (7) Power-down.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD8130ARZ |
|
IC AMP DIFF LN LDIST 40MA 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
AD8130ARZ-REEL |
|
IC AMP DIFF LN LDIST 40MA 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
AD8130ARZ-REEL7 |
|
IC AMP DIFF LN LDIST 40MA 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
