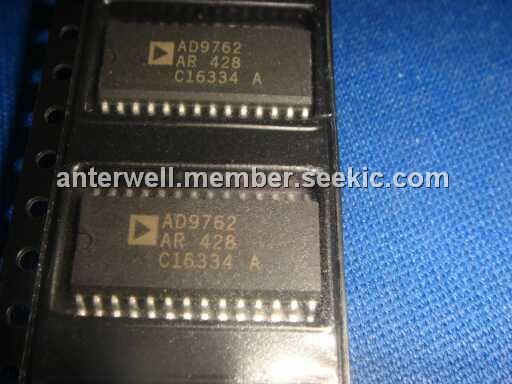

Product Summary

The AD9762AR is a high performance, low power CMOS digital-to-analog converter. It shares the same interface options, small outline package and pinout, thus providing an upward or downward component selection path based on performance, resolution and cost. The AD9762AR offers exceptional ac and dc performance while supporting update rates up to 125 MSPS. The applications of the AD9762AR are Basestations (Single/Multichannel Applications), ADSL/HFC Modems, Direct Digital Synthesis (DDS), Instrumentation.

Parametrics

AD9762AR absolute maximum ratings: (1)AVDD:–0.3V to +6.5V; (2)DVDD:–0.3V to +6.5V; (3)ACOM:–0.3V to +0.3V; (4)AVDD:–6.5V to +6.5V; (5)CLOCK, SLEEP:–0.3V to DVDD + 0.3V; (6)Digital Inputs:–0.3V to DVDD + 0.3V; (7)IOUTA, IOUTB:–1.0V to AVDD + 0.3V; (8)COMP1, COMP2:–0.3V to AVDD + 0.3V; (9)REFIO, FSADJ:–0.3V to AVDD + 0.3V; (10)REFLO:–0.3V to +0.3V; (11)Junction Temperature:+150℃; (12)Storage Temperature:–65℃ to +150℃; (13)Lead Temperature(10 sec):+300℃.

Features

AD9762AR features: (1)Member of Pin-Compatible TxDAC Product Family; (2)125 MSPS Update Rate; (3)12-Bit Resolution; (4)Excellent Spurious Free Dynamic Range Performance; (5)SFDR to Nyquist @ 5 MHz Output: 70 dBc; (6)Differential Current Outputs: 2 mA to 20 mA; (7)Power Dissipation: 175 mW @ 5 V to 45mW @ 3 V; (8)Power-Down Mode: 25 mW @ 5 V; (9)On-Chip 1.20 V Reference; (10)Single +5 V or +3 V Supply Operation; (11)Packages: 28-Lead SOIC and TSSOP; (12)Edge-Triggered Latches.

Diagrams

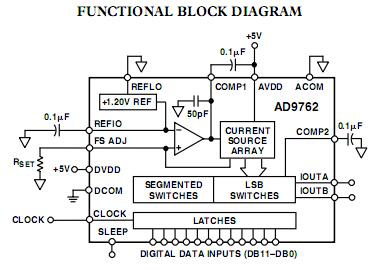

AD9762AR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AD9762AR
AD9762AR


IC DAC 12BIT 125MSPS 28-SOIC

Data Sheet

0-27: $7.29
AD9762ARRL
AD9762ARRL


IC DAC 12BIT 100KSPS 28-SOIC

Data Sheet

0-1000: $5.26
AD9762ARU
AD9762ARU


IC DAC 12BIT 125MSPS 28-TSSOP

Data Sheet

0-50: $7.29
AD9762ARURL7
AD9762ARURL7


IC DAC 12BIT 100KSPS 28-TSSOP

Data Sheet

0-1000: $5.26
AD9762ARUZ
AD9762ARUZ


IC DAC 12BIT 125MSPS 28-TSSOP

Data Sheet

0-1: $7.51
1-10: $6.83
10-25: $6.31
25-100: $5.80
100-250: $5.29
250-500: $4.95
500-1000: $4.55
AD9762ARUZRL7
AD9762ARUZRL7


IC DAC 12BIT 125MSPS 28-TSSOP

Data Sheet

0-1000: $4.55
AD9762ARZ
AD9762ARZ


IC DAC 12BIT 125MSPS 28-SOIC

Data Sheet

0-1: $7.51
1-10: $6.83
10-100: $5.80
100-250: $5.29
250-500: $4.95
500-1000: $4.55
AD9762ARZRL
AD9762ARZRL


IC DAC 12BIT 125MSPS 28-SOIC

Data Sheet

0-1000: $4.55
