Product Summary
The ADF4360-4BCPZ is a fully integrated integer-N synthesizer and voltage-controlled oscillator (VCO). The The ADF4360-4BCPZ is designed for a center frequency of 1600MHz. The ADF4360-4BCPZ operates with a power supply ranging from 3.0 V to 3.6 V and can be powered down when not in use. Applications of the ADF4360-4BCPZ include: Wireless handsets (DECT, GSM, PCS, DCS, WCDMA) , Test equipment, Wireless LANs, CATV equipment.
Parametrics
ADF4360-4BCPZ absolute maximum ratings: (1) AVdd to GND: -0.3V to +3.9V; (2) AVdd to DVdd : -0.3V to +0.3V; (3)Vvco to GND: -0.3V to +3.9V; (4) Vvco to AVdd: -0.3V to +0.3V; (5) Digital I/O Voltage to GND : -0.3V to Vdd +0.3V; (6) Analog I/O Voltage to GND : -0.3V to Vdd +0.3V; (7) REFin to GND: -0.3V to Vdd +0.3V; (8) Maximum Junction Temperature : 150°C; (9) CSP θja Thermal Impedance : 50°C/W (Paddle Soldered) , 88°C/W (Paddle Not Soldered) ; (10) Lead Temperature, Soldering Vapor Phase (60 sec) : 215°C; (11) Infrared (15 sec) : 220°C.
Features
ADF4360-4BCPZ features: (1) Output frequency range: 1450 MHz to 1750 MHz; (2) Divide-by-2 output; (3) 3.0 V to 3.6 V power supply ; (4) 1.8 V logic compatibility; (5) Integer-N synthesizer; (6) Programmable dual-modulus prescaler 8/9, 16/17, 32/33 ; (7) Programmable output power level; (8) 3-wire serial interface ; (9) Analog and digital lock detect;(10)Hardware and software power-down mode.

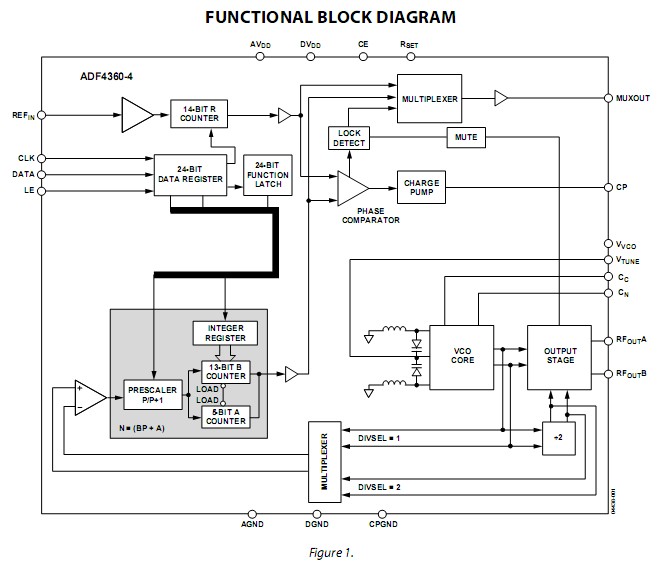

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ADF4360-4BCPZ |
IC INT SYNTH/VCO SEALED 24-LFCSP |
Data Sheet |
|
|
||||||||||||||||||||
ADF4360-4BCPZRL |
IC SYNTHESIZER VCO 24LFCSP |
Data Sheet |
|
|
||||||||||||||||||||
ADF4360-4BCPZRL7 |
IC SYNTHESIZER VCO 24LFCSP |
Data Sheet |
|
|
