LE58QL063HVC

Product Summary

The LE58QL063HVC is a Quad Low Voltage Subscriber Line Audio-Processing Circuit. The LE58QL063HVC integrates the key functions of analog line cards into high-performance, very-programmable, four-channel codec-filter devices. It is based on the proven design of Legerity’s reliable SLAC device families. The application of the LE58QL063HVC is Codec function on telephone switch line cards.

Parametrics

LE58QL063HVC absolute maximum ratings: (1)Storage Temperature:–60℃ < TA < +125℃; (2)Ambient Temperature, under Bias:–40℃ < TA < +85℃; (3)Ambient relative humidity (non condensing):5 to 95%; (4)VCCA with respect to AGND:–0.4 to + 4.0 V; (5)VCCA with respect to VCCD:±0.4 V; (6)VCCD with respect to DGND:–0.4 to + 4.0 V; (7)VIN with respect to AGND:–0.4 V to (VCCA + 0.4 V); (8)AGND with respect to DGND:±50 mV; (9)Digital pins with respect to DGND:–0.4 to 5.5 V or VCCD + 2.37V, whichever is smaller; (10)Latch up immunity (any pin):± 100 mA; (11)Total VCC current if rise rate of VCC > 0.4 V/μs:0.5 A.

Features

LE58QL063HVC features: (1)Low-power, 3.3 V CMOS technology with 5 V tolerant digital inputs; (2)Pin programmable PCM/MPI or GCI interface; (3)Software and coefficient compatible to the Le79Q061/063 QSLAC device; (4)Standard PCM/microprocessor interface(PCM/MPI mode); (5)Single or Dual PCM ports available; (6)Time slot assigner (up to 128 channels per port); (7)Clock slot and transmit clock edge options; (8)Optional supervision on the PCM highway; (9)Real Time Data with interrupt (open drain or TTL); (10)Broadcast mode; (11)SLIC device input impedance and Transhybrid balance; (12)Transmit and receive gains and Equalization; (13)Programmable Digital I/O pins with debouncing; (14)A-law, μ-law, or linear coding; (15)Built-in test modes with loopback, tone generation, and μP access to PCM data; (16)Mixed state (analog and digital) impedance scaling; (17)Performance guaranteed over a 12 dB gain range; (18)Supports multiplexed SLIC device outputs; (19)256 kHz or 293 kHz chopper clock for Legerity SLIC devices with switching regulator; (20)Maximum channel bandwidth for V.90 modems.

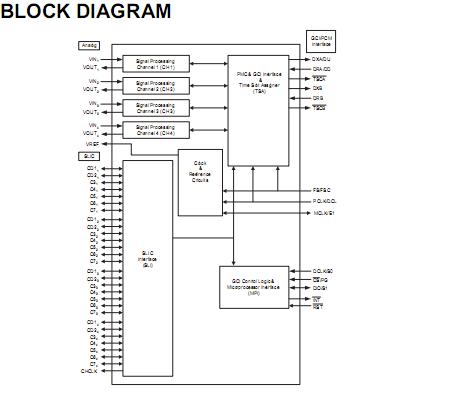

Diagrams
