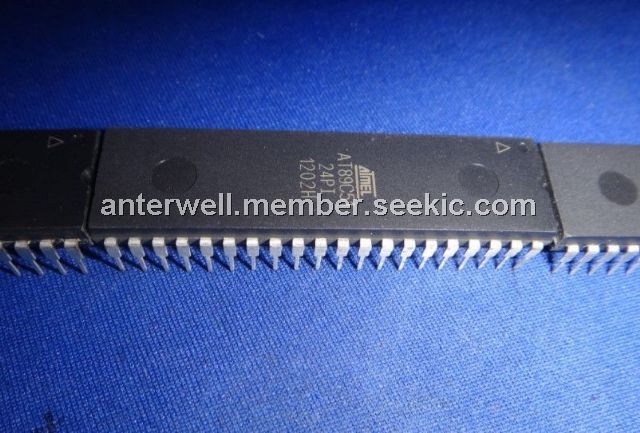

AT89C51-24PI

8-bit microcontroller, 15mA, -1.0V to +7.0V, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.80~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.80~1.00

PartNumber:: AT89C51-24PI

Brand:: ATMEL Corporation - ATMEL | Pack: DIP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ellen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-09-18

From Other Seller

Part Number:AT89C51-24PI
US $0.80 - 1.00
IRF3205

US $0.80 - 2.50 / Piece
(0) Remove
2DI240A-055

US $70.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AT89C51-24PI is a low-power, high-performance CMOS 8-bit microcomputer with 4Kbytes of Flash Programmable and Erasable Read Only Memory (PEROM) . The AT89C51-24PI is manufactured using Atmel high density nonvolatile memory technologyand is compatible with the industry standard MCS-51 instruction set and pinout. By combining a versatile 8-bit CPU with Flash on a monolithic chip, the Atmel AT89C51-24PI is a powerful microcomputer which provides a highly flexible and cost effective solution to many embedded control appli-cations.

Parametrics

AT89C51-24PI absolute maximum ratings: (1) Operating Temperature: -55°C to +125°C; (2) Storage Temperature: -65°C to +150°C; (3) Voltage on Any Pin with Respect to Ground: -1.0V to +7V; (4) Maximum Operating Voltage: 6.6V; (5) DC Output Current: 15mA.

Features

AT89C51-24PI feature: (1) Compatible with MCS-51 Products; (2) 4K Bytes of In-System Reprogrammable Flash Memory– Endurance: 1,000 Write/Erase Cycles; (3) Fully Static Operation: 0 Hz to 24 MHz; (4) Three-Level Program Memory Lock; (5) 128 x 8-Bit Internal RAM; (6) 32 Programmable I/O Lines; (7) Two 16-Bit Timer/Counters; (8) Six Interrupt Sources; (9) Programmable Serial Channel; (10) Low Power Idle and Power Down Modes.
