Product Summary
The FM24C256-SE is a 256-kilobit nonvolatile memory employing an advanced ferroelectric process. A ferroelectric random access memory or FRAM is nonvolatile and performs reads and writes like a RAM. The FM24C256-SE provides reliable data retention for 45 years while eliminating the complexities, overhead, and system level reliability problems caused by EEPROM and other nonvolatile memories. The FM24C256-SE performs write operations at bus speed. No write delays are incurred.
Parametrics
FM24C256-SE absolute maximum ratings: (1)Voltage on VDD with respect to VSS:-1.0V to +7.0V ; (2)Voltage on any signal pin with respect to VSS:-1.0V to +7.0V ; (3)and VIN ＜ VDD+1.0V ; (4)Storage Temperature:-55℃ to + 125℃; (5)Lead temperature (Soldering, 10 seconds):300℃; (6)Electrostatic Discharge Voltage:Human Body Model(JEDEC Std JESD22-A114-B): 4kV, Machine Model(JEDEC Std JESD22-A115-A):400V ; (7)Package Moisture Sensitivity Level:MSL-1.
Features
FM24C256-SE features: (1)Organized as 32,768 x 8 bits ; (2)High Endurance 10 Billion (1010) Read/Writes ; (3)45 year Data Retention ; (4)NoDelay Writes ; (5)Advanced High-Reliability Ferroelectric Process ; (6)Up to 1 MHz Maximum Bus Frequency ; (7)Supports Legacy Timing for 100 kHz & 400 kHz; (8)Low Power Operation ; (9)5V Operation ; (10)200 μA Active Current (100 kHz) ; (11)100 μA Standby Current ; (12)Industrial Temperature -40℃ to +85℃; (13)8-pin EIAJ SOIC ; (14)“Green” Packaging Option.

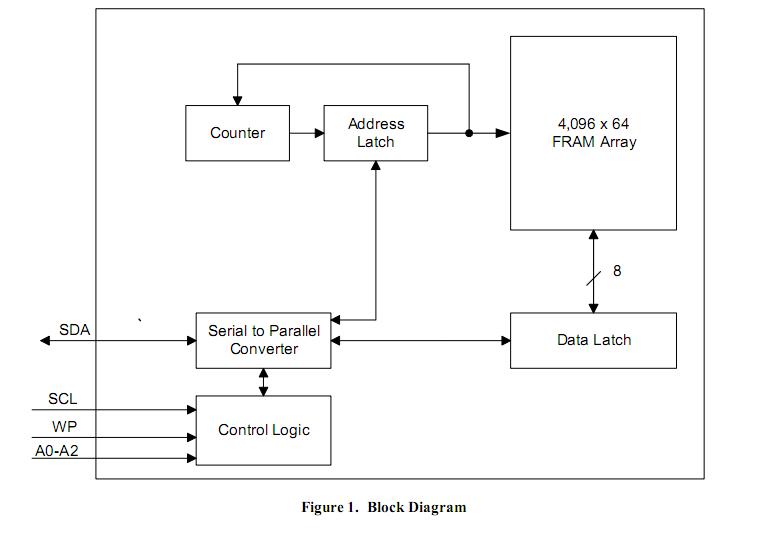

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 FM24C256-SE |
Ramtron |
F-RAM 256K (32Kx8) 5V |
Data Sheet |
Negotiable |
|
||||
|
FM24C256-SETR |
Ramtron |
F-RAM 256K (32Kx8) 5V |
Data Sheet |
Negotiable |
|
||||
