Product Summary

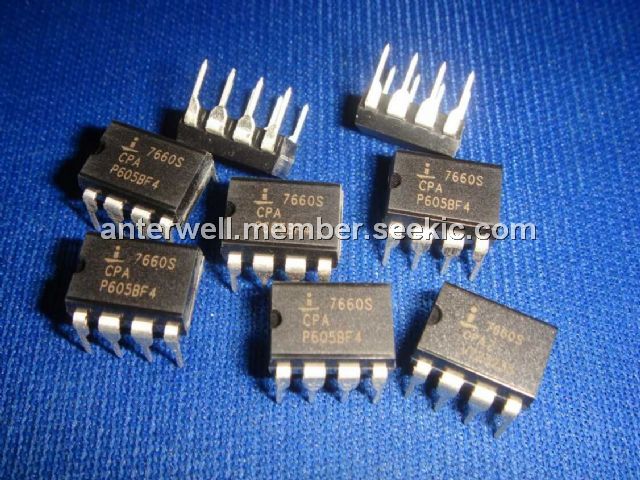

The ICL7660SCPAZ is a Super Voltage Converter. It is a monolithic CMOS voltage conversion IC that guarantees significant performance advantages over other similar devices. The ICL7660SCPAZ performs supply voltage conversion from positive to negative for an input range of 1.5V to 12V, resulting in complementary output voltages of -1.5V to -12V. The applications of the ICL7660SCPAZ are Simple Conversion of +5V to ±5V Supplies, Negative Supplies for Data Acquisition Systems and Instrumentation, RS232 Power Supplies, Supply Splitter.

Parametrics

ICL7660SCPAZ absolute maximum ratings: (1)Supply Voltage:+13.0V; (2)LV and OSC Input Voltage: V+ < 5.5V: -0.3V to V+ + 0.3V, V+ > 5.5V: V+ -5.5V to V+ +0.3V; (3)Current into LV: V+ > 3.5V:20μA; (4)Output Short Duration:VSUPPLY ≤ 5.5V:Continuous; (5)Storage Temperature Range:-65℃ to 150℃.

Features

ICL7660SCPAZ features: (1)Guaranteed Lower Max Supply Current for All Temperature Ranges; (2)Wide Operating Voltage Range 1.5V to 12V; (3)100% Tested at 3V; (4)No External Diode Over Full Temperature and Voltage Range; (5)Boost Pin (Pin 1) for Higher Switching Frequency; (6)Guaranteed Minimum Power Efficiency of 96%; (7)Improved Minimum Open Circuit Voltage Conversion Efficiency of 99%; (8)Improved SCR Latchup Protection; (9)Simple Conversion of +5V Logic Supply to ±5V Supplies; (10)Simple Voltage Multiplication VOUT = (-)nVIN; (11)Easy to Use - Requires Only 2 External Non-Critical Passive Components; (12)Improved Direct Replacement for Industry Standard ; (13)ICL7660 and Other Second Source Devices; (14)Pb-Free Plus Anneal Available (RoHS Compliant).

Diagrams

ICL7660SCPAZ pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ICL7660SCPAZ
ICL7660SCPAZ

Intersil

DC/DC Switching Converters CMOS VOLT CONVERTER 8 PDIP COM

Data Sheet

0-1: $0.95
1-25: $0.81
25-100: $0.67
100-250: $0.64
