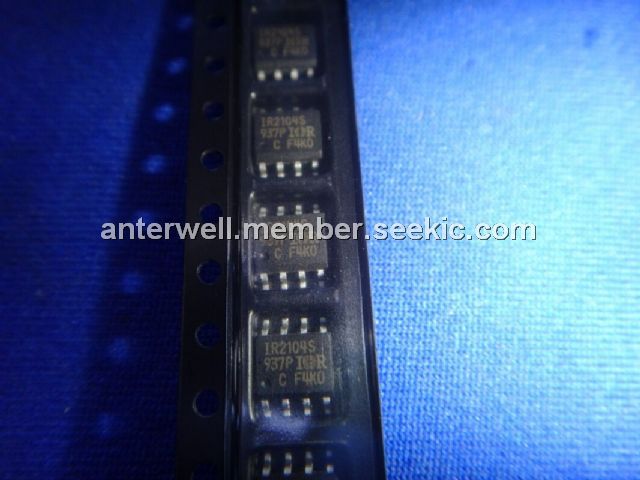

IR2104SPBF

Undervoltage lockout, half-bridge driver, SOIC-8, Internally set deadtime, 600V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.45~0.55 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.45~0.55

PartNumber:: IR2104SPBF

Brand:: International Rectifier - IR | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ellen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-06

From Other Seller

Part Number:IR2104SPBF
US $0.45 - 0.55
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

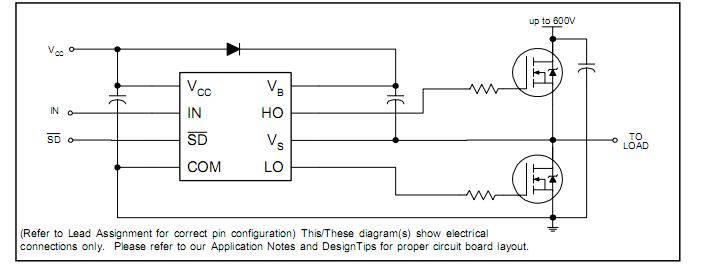

The IR2104SPBF is a high voltage, high speed power MOSFET and IGBT driver with dependent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3V logic. The IR2104SPBF features a high pulse current buffer stage designed for minimum driver cross-conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which operates from 10 to 600 volts.

Parametrics

IR2104SPBF absolute maximum ratings: (1)High side floating absolute voltage：-0.3V to 625V; (2)High side floating supply offset voltage:VB - 25V to VB + 0.3V; (3)High side floating output voltage:VS - 0.3V to VB + 0.3V; (4)Low side and logic fixed supply voltage:-0.3V to 25V; (5)Low side output voltage:-0.3V to VCC + 0.3V; (6)Logic input voltage (IN & SD):-0.3V to VCC + 0.3V; (7) Allowable offset supply voltage transient:50 V/ns; (8)Package power dissipation:0.625W; (9)Thermal resistance, junction to ambient:200℃/W; (10)Junction temperature:150℃; (11)Storage temperature:-55℃ to 150℃; (12)Lead temperature (soldering, 10 seconds):300℃.

Features

IR2104SPBF features: (1)Floating channel designed for bootstrap operation; (2)Fully operational to +600V; (3)Tolerant to negative transient voltage; (4)dV/dt immune; (5)Gate drive supply range from 10 to 20V; (6)Undervoltage lockout; (7)3.3V, 5V and 15V input logic compatible; (8)Cross-conduction prevention logic; (9)Internally set deadtime; (10)High side output in phase with input; (11)Shut down input turns off both channels; (12)Matched propagation delay for both channels; (13)Also available LEAD-FREE.
