Product Summary

The IR21084S is a high voltage, high speed power MOSFET and IGBT driver with dependent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3V logic. The IR21084S features a high pulse current buffer stage designed for minimum driver cross-conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which operates up to 600 volts.

Parametrics

IR21084S absolute maximum ratings: (1)High side floating absolute voltage:-0.3V to 625V; (2)High side floating supply offset voltage:VB - 25V to VB+0.3V; (3)High side floating output voltage:VS - 0.3V to VB+0.3V; (4)Low side and logic fixed supply voltage:-0.3V to 25V; (5)Low side output voltage:-0.3V to VCC+0.3V; (6)Programmable dead-time pin voltage:VSS-0.3V to VCC+0.3V; (7)Logic input voltage (HIN & LIN):VSS-0.3V to VCC+0.3V; (8)Logic ground:VCC-25V to VCC+0.3V; (9) Allowable offset supply voltage transient:50 V/ns; (10)Package power dissipation:1.0W; (11)Thermal resistance, junction to ambient:120℃/W; (12)Junction temperature:150℃; (13)Storage temperature:-50℃ to 150℃; (14)Lead temperature (soldering, 10 seconds):300℃.

Features

IR21084S features: (1)Floating channel designed for bootstrap operation; (2)Fully operational to +600V; (3)Tolerant to negative transient voltage; (4)dV/dt immune; (5)Gate drive supply range from 10 to 20V; (6)Undervoltage lockout for both channels; (7)3.3V, 5V and 15V input logic compatible; (8)Cross-conduction prevention logic; (9)Matched propagation delay for both channels; (10)High side output in phase with HIN input; (11)Low side output out of phase with LIN input; (12)Logic and power ground +/- 5V offset.; (13)Internal 540ns dead-time, and programmable up to 5us with one external RDT resistor (IR21084); (14)Lower di/dt gate driver for better noise immunity; (15)Available in Lead-Free.

Diagrams

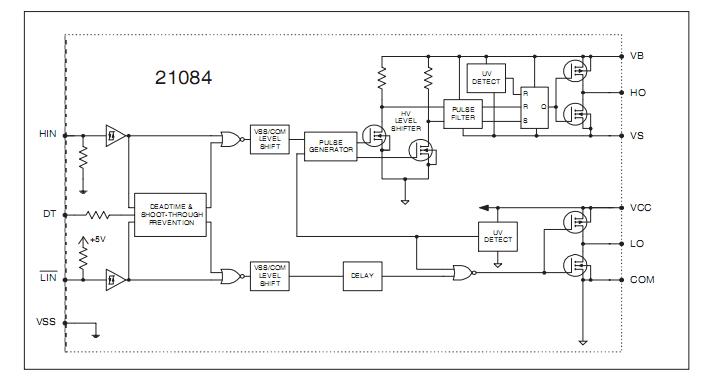

IR21084S block diagram
