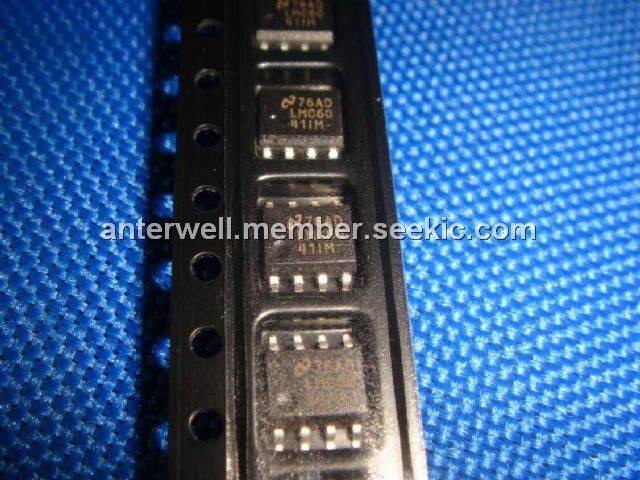

Product Summary

The LMC6041IM is a CMOS Single Micropower Operational Amplifier. Providing input currents of only 2 fA typical, the LMC6041IM can operate from a single supply, has output swing extending to each supply rail, and an input voltage range that includes ground. The applications of the LMC6041IM are Battery monitoring and power conditioning, Photodiode and infrared detector preamplifier, Silicon based transducer systems, Hand-held analytic instruments, pH probe buffer amplifier, Fire and smoke detection systems, Charge amplifier for piezoelectric transducers.

Parametrics

LMC6041IM absolute maximum ratings: (1)Differential Input Voltage:±16V; (2)Supply Voltage (V+ - V-):16V; (3)Lead Temperature(Soldering, 10 sec.):260℃; (4)Storage Temperature Range:-65℃ to +150℃; (5)Junction Temperature:110℃; (6)ESD Tolerance:500V; (7)Current at Input Pin:±5mA; (8)Current at Output Pin:±18 mA; (9)Current at Power Supply Pin:35 mA; (10)Voltage at Input/Output Pin:(V+) + 0.3V, (V-) - 0.3V.

Features

LMC6041IM features: (1)Low supply current: 14 μA (Typ); (2)Operates from 4.5V to 15.5V single supply; (3)Ultra low input current: 2 fA (Typ); (4)Rail-to-rail output swing; (5)Input common-mode range includes ground.

Diagrams

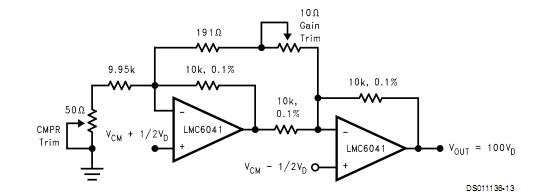

LMC6041IM circuit diagram
