M30620FCPFP

single-chip microcomputer, QFP-100, -0.3 to 6.5V, high-performance, sophisticated instructions

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.00~3.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.00~3.50

PartNumber:: M30620FCPFP

Brand:: Renesas Technology Corp - Renesas | Pack: QFP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ellen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-07

From Other Seller

Part Number:M30620FCPFP
US $3.00 - 3.50
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
IRFP260N

US $1.30 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

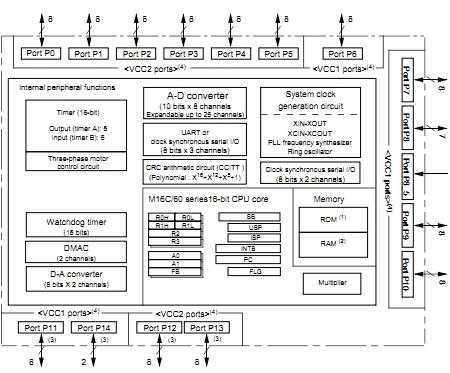

The M30620FCPFP is a single-chip microcomputer. The device is built using the high-performance silicon gate CMOS process. It is packaged in a 80-pin,100-pin and 128-pin plastic molded QFP. The M30620FCPFP operates using sophisticated instructions featuring a high level of instruction efficiency. With 1M bytes of address space, the M30620FCPFP is capable of executing instructions at high speed. In addition, the M30620FCPFP contains a multiplier and DMAC which combined with fast instruction processing capability, makes it suitable for control of various OA, communication, and industrial equipment which requires high-speed arithmetic/logic operations. The M30620FCPFP is suitable for Audio, cameras, office/ communications/ portable/ industrial equipment, automobile, etc.

Parametrics

M30620FCPFP absolute maximum ratings: (1)VCC1, VCC2supply voltage: -0.3 to 6.5V when VCC1=AVCC; (2)VCC2, supply voltage: -0.3 to VCC1+0.1V at VCC2; (3)AVCC, analog supply voltage: -0.3 to 6.5V; (4)Vi, input voltage: -0.3 to VCC1+0.3V; (5)Vo, output voltage: -0.3 to VCC1+0.3V; (6)Pd, power dissipation: -0.3 to 6.5V; (7)Topr, operating ambient temperature: -20 to 85℃; (8)Tstg, storage temperature: -65 to 150℃.

Features

M30620FCPFP features: (1)built using the high-performance silicon gate CMOS process; (2)using a M16C/60 Series CPU core; (3)operates using sophisticated instructions; (4)high level of instruction efficiency; (5)1M bytes of address space; (6)capable of executing instructions at high speed; (7)ontains a multiplier and DMAC.
