Product Summary

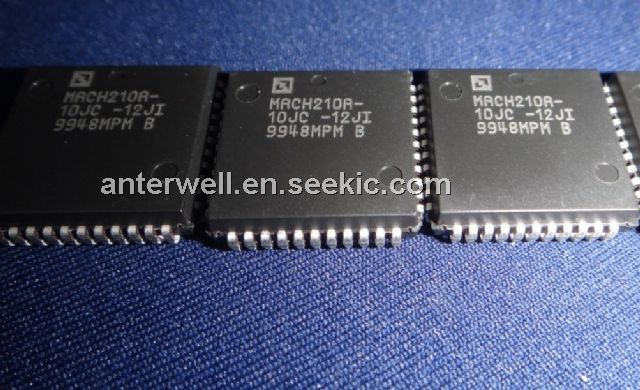

The MACH210 is a member of the high-performance EE CMOS MACH 2 device family. This device has approximately six times the logic macrocell capability of the popular PAL22V10 without loss of speed. The MACH210 consists of four PAL blocks interconnected by a programmable switch matrix. The four PAL blocks are essentially “PAL22V16” structures complete with product-term arrays and programmable macrocells, including additional buried macrocells. The switch matrix connects the PAL blocks to each other and to all input pins, providing a high degree of connectivity between the fullyconnected PAL blocks. This allows designs to be placed and routed efficiently.
