Product Summary

The SSM2141SZ is an integrated differential amplifier intended to receive balanced line inputs in audio applications requiring a high level of noise immunity and optimum common-mode rejection. The SSM2141SZ typically achieves 100 dB of commonmode rejection (CMR), whereas implementing an op amp with four off-the-shelf precision resistors will typically achieve only 40 dB of CMR—inadequate for high-performance audio. The applications of the SSM2141SZ include Line Receivers, Summing Amplifiers, Buffer Amplifiers–Drives 600 V Load.

Parametrics

SSM2141SZ absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Input Voltage: Supply Voltage; (3)Output Short-Circuit Duration: Continuous; (4)Storage Temperature Range: P Package: –65℃ to +150℃; (5)Lead Temperature (Soldering, 60 sec): +300℃; (6)Junction Temperature: +150℃; (7)Operating Temperature Range: –40℃ to +85℃.

Features

SSM2141SZ features: (1)High Common-Mode Rejectio: DC: 100 dB typ, 60 Hz: 100 dB typ, 20 kHz: 70 dB typ, 40 kHz: 62 dB typ; (2)Low Distortion: 0.001% typ; (3)Fast Slew Rate: 9.5 V/ms typ; (4)Wide Bandwidth: 3 MHz typ; (5)Low Cost; (6)Complements SSM2142 Differential Line Driver.

Diagrams

SSM2141SZ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

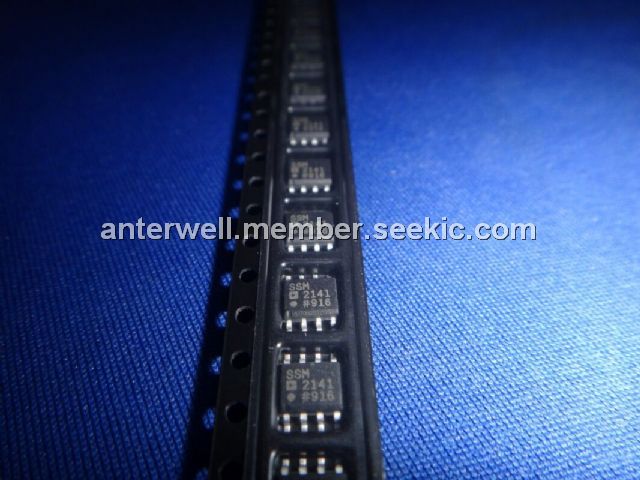

SSM2141SZ
SSM2141SZ

IC AMP AUDIO MONO CLASS AB 8SOIC
Data Sheet
0-1: $2.53
1-10: $2.25
10-100: $1.85
100-250: $1.67
250-500: $1.50
500-1000: $1.26
1000-2500: $1.20
SSM2141SZ-REEL
SSM2141SZ-REEL

IC DIFF LINE RCVR 8SOIC
Data Sheet
0-2500: $1.20
