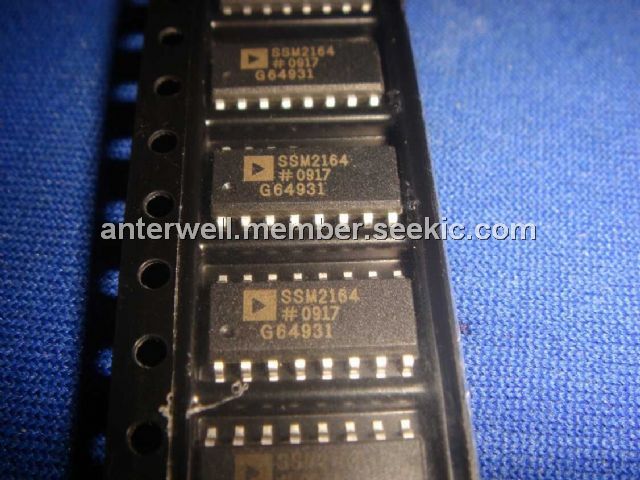

Product Summary
The SSM2164S is a Low Cost Quad Voltage Controlled Amplifier. High performance (100 dB dynamic range, 0.02% THD) is provided at a very low cost-per-VCA, resulting in excellent value for cost sensitive gain control applications. Each VCA of SSM2164S offers current input and output for maximum design flexibility, and a ground referenced–33 mV/dB control port. The applications of the SSM2164S include Remote, Automatic, or Computer Volume Controls, Automotive Volume/Balance/Faders, Audio Mixers, Compressor/Limiters/Compandors.
Parametrics
SSM2164S absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Input, Output, Control Voltages: V– to V+; (3)Output Short Circuit Duration to GND: Indefinite; (4)Storage Temperature Range: –65℃ to +150℃; (5)Operating Temperature Range: –40℃ to +85℃; (6)Junction Temperature Range: –65℃ to +150℃; (7)Lead Temperature Range (Soldering 60 sec): +300℃.
Features
SSM2164S features: (1)Four High Performance VCAs in a Single Package 0.02% THD; (2)No External Trimming; (3)120 dB Gain Range; (4)0.07 dB Gain Matching (Unity Gain); (5)Class A or AB Operation.

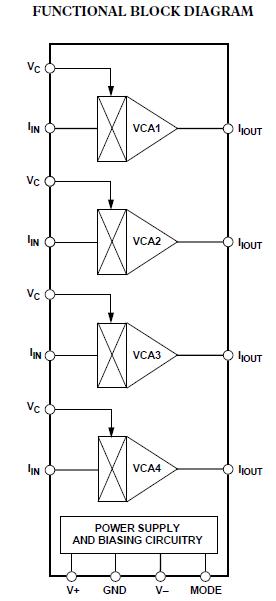

Diagrams
