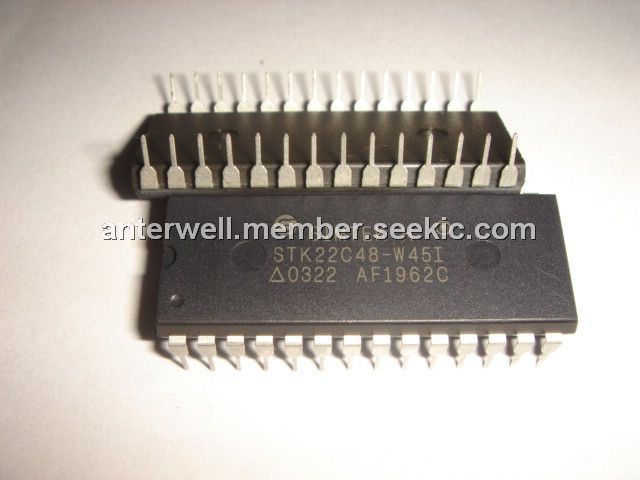

Product Summary
The STK22C48-W45I is a fast SRAM with a nonvolatile element incorporated in each static memory cell. The SRAM can be read and written an unlimited number of times, while independent nonvolatile data resides in the Nonvolatile Elements. Data transfers from the STK22C48-W45I to the Nonvolatile Elements (the STORE operation) can take place automatically on power down using charge stored in system capacitance.
Parametrics
STK22C48-W45I absolute maximum ratings: (1)Voltage on Input Relative to Ground: –0.5V to 7.0V; (2)Voltage on Input Relative to VSS: –0.6V to (VCC + 0.5V); (3)Voltage on DQ0-7: –0.5V to (VCC + 0.5V); (4)Temperature under Bias: –55℃ to 125℃; (5)Storage Temperature: –65℃ to 150℃; (6)Power Dissipation: 1W; (7)DC Output Current (1 output at a time, 1s duration): 15mA.
Features
STK22C48-W45I features: (1)Nonvolatile Storage without Battery Problems; (2)Directly Replaces 2K x 8 Static RAM, Battery- Backed RAM or EEPROMs; (3)25ns, 35ns and 45ns Access Times; (4)STORE to Nonvolatile Elements Initiated by AutoStore on Power Down; (5)RECALL to SRAM Initiated by Power Restore; (6)10mA Typical ICC at 200ns Cycle Time; (7)Unlimited READ, WRITE and RECALL Cycles; (8)1,000,000 STORE Cycles to Nonvolatile Elements.

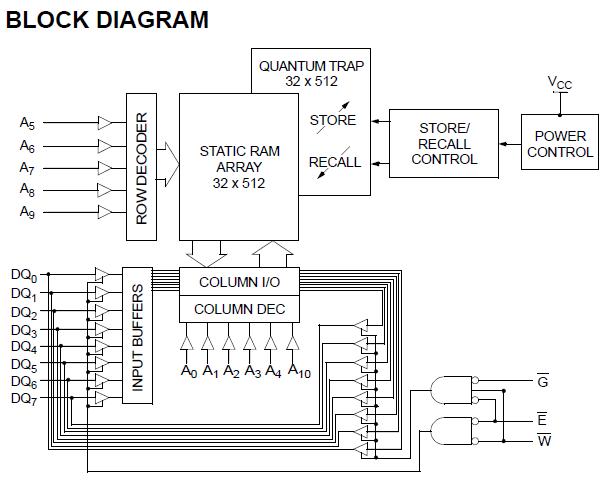

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STK22C48-W45I |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
