Product Summary

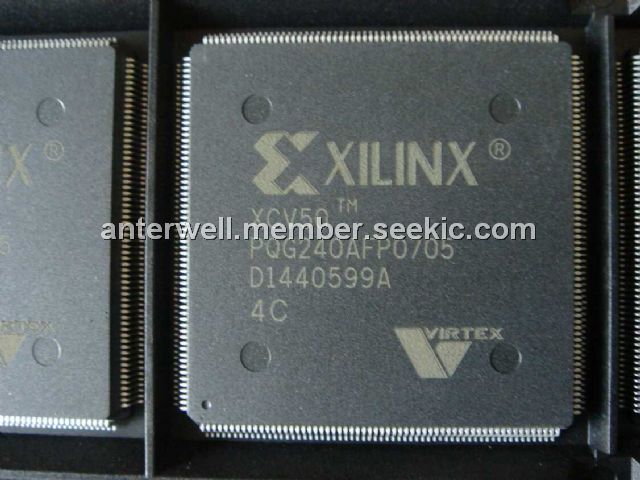

The XCV50-4PQG240C Field-Programmable Gate Array gives users high performance, abundant logic resources, and a rich feature set, all at an exceptionally low price. The XCV50-4PQG240C offers densities ranging from 15,000 to 200,000 system gates. System performance is supported up to 200 MHz.
Parametrics
XCV50-4PQG240C absolute maximum ratings: (1)Supply voltage relative to GND: –0.5 to 3.0 V; (2)Supply voltage relative to GND: –0.5 to 4.0 V; (3)Input reference voltage: –0.5 to 3.6 V; (4)Input voltage relative to GND(3) 5V tolerant I/O: –0.5 to 5.5 V, No 5V tolerance: –0.5 to VCCO+0.5 V; (5)Voltage applied to 3-state output 5V tolerant I/O: –0.5 to 5.5 V, No 5V tolerance: –0.5 to VCCO+0.5 V; (6)Storage temperature (ambient): –65 to +150 ℃; (7)Junction temperature: +125 ℃.
Features
XCV50-4PQG240C features: (1)Second generation ASIC replacement technology: Densities as high as 5,292 logic cells with up to 200,000 system gates, Streamlined features based on Virtex FPGA architecture; (2)System level features: Fully PCI compliant, Low-power segmented routing architecture, Full readback ability for verification/observability; (3)Versatile I/O and packaging: Pb-free package options, Low-cost packages available in all densities.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 XCV50-4PQG240C |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
XCV50 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
XCV50-4BG256C |
|
IC FPGA 2.5V C-TEMP 256-PBGA |
Data Sheet |
Negotiable |
|
||||
|
XCV50-4BG256I |
|
IC FPGA 2.5V I-TEMP 256-PBGA |
Data Sheet |
Negotiable |
|
||||
|
XCV50-4CS144C |
|
IC FPGA 2.5V C-TEMP 144-CSBGA |
Data Sheet |
Negotiable |
|
||||
|
XCV50-4CS144I |
|
IC FPGA 2.5V I-TEMP 144-CSBGA |
Data Sheet |
Negotiable |
|
||||
|
XCV50-4FG256C |
|
IC FPGA 2.5V C-TEMP 256-FBGA |
Data Sheet |
Negotiable |
|
||||
