Product Summary
The AD704JN is a quad, low power bipolar op amp that has the low input bias current of a BiFET amplifier but which offers asignificantly lower IB drift over temperature. The AD704JN utilizes Super-beta bipolar input transistors to achieve picoampere input biascurrent levels (similar to FET input amplifiers at room tempera-ture), while its IB typically only increases by 5× at +125°C(unlike a BiFET amp, for which IB doubles every 10°C resultingin a 1000× increase at +125°C) . Furthermore the AD704JN achieves 75μV offset voltage and low noise characteristics of aprecision bipolar input op amp. Applications of the AD704JN include: Industrial/Process Controls, Weigh Scales, ECG/EKG Instrumentation, Low Frequency Active Filters.
Parametrics
AD704JN absolute maximum ratings: (1) Supply Voltage:±18V; (2) Internal Power Dissipation (+25°C) ; (3) Input Voltage: ±Vs; (4) Differential Input Voltage: ± 0.7V; (5) Output Short Circuit Duration (Single Input) : Indefinite; (6) Storage Temperature Range: (Q) : -65°C to +150°C, (N, R) : -65°C to 125°C; (7) Operating Temperature Range: 0°C to 70°C; (8) Lead Temperature Range (Soldering 10 seconds) : +300°C.
Features
AD704JN features: (1) High DC Precision75 μV max Offset Voltage, 1μV/°C max Offset Voltage Drift, 150pA max Input Bias Current, 0.2pA/°C; (2) Low nosie: 0.5μV p-p typical Noise, 0.1Hz to 10Hz; (3) Low Power: 600μA max Supply Current per Amplifier; (4) Chips & MIL-STD-883B Processing Available; (5) Available in Tape and Reel in Accordance with EIA-481A Standard; (6) PRIMARY APPLICATIONS; (7)Industrial/Process Controls; (8) Weigh Scales; (9) ECG/EKG Instrumentation; (10) Low Frequency Active Filters.
Diagrams

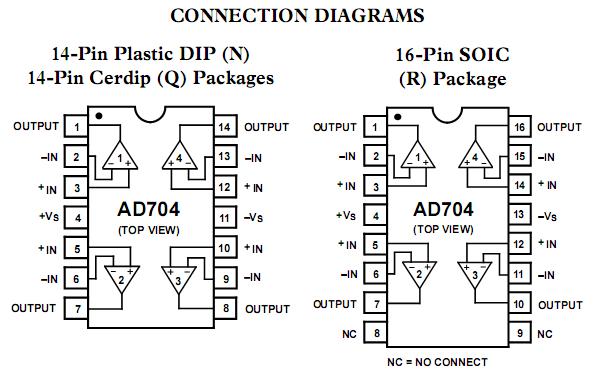

Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

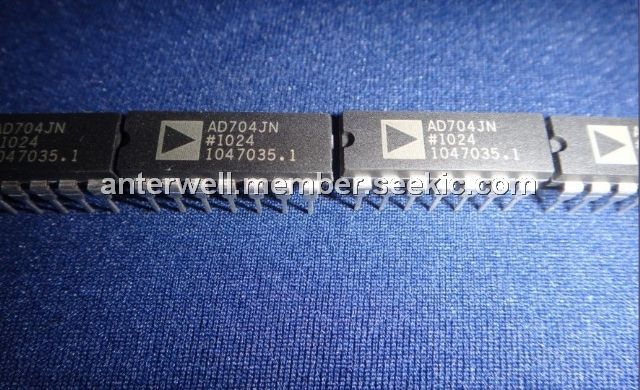

AD704JN |
Analog Devices Inc |
IC BIPOLAR OPAMP QUAD 14-DIP |
Data Sheet |
|
|
|||||||||||||||||||
AD704JNZ |
IC OPAMP GP QUAD PREC LN 14DIP |
Data Sheet |
|
|
