Product Summary
The AD876JR is a CMOS, 160 mW, 10-bit, 20 MSPS analog-to-digital converter (ADC). The device has an on-chip input sample-and-hold amplifier. By implementing a multistage pipelined architecture with output error correction logic, the AD876JR offers accurate performance and guarantees no missing codes over the full operating temperature range. Force and sense connections to the reference inputs minimize external voltage drops. The AD876JR can be placed into a standby mode of operation reducing the power below 50 mW.
Parametrics
AD876JR absolute maximum ratings: (1)AVDD:–0.5 to +6.5 Volts; (2)DVDD, DRVDD:–0.5 to +6.5 Volts; (3)AVSS:–0.5 to +0.5 Volts; (4)AIN:–0.5 to +6.5 Volts; (5)REFTS, REFTF, REFBS, REFBF:–0.5 to +6.5 Volts; (6)Digital Inputs, CLK:–0.5 to +6.5 Volts; (7)Junction Temperature:+150℃; (8)Storage Temperature:–65℃ to +150℃; (9)Lead Temperature(10 sec):+300℃.
Features
AD876JR features: (1)CMOS 10-Bit 20 MSPS Sampling A/D Converter; (2)Pin-Compatible 8-Bit Option; (3)Power Dissipation: 160 mW; (4)+5 V Single Supply Operation; (5)Differential Nonlinearity: 0.5 LSB; (6)Guaranteed No Missing Codes; (7)Power Down (Standby) Mode; (8)Three-State Outputs; (9)Digital I/Os Compatible with +5 V or +3.3 V Logic; (10)Adjustable Reference Input; (11)Small Size: 28-Lead SOIC, 28-Lead SSOP, or 48-Lead Thin Quad Flatpack (TQFP).

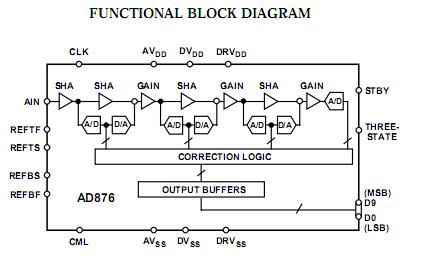

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD876JR |
|
IC ADC 10BIT 20MSPS CMOS 28-SOIC |
Data Sheet |
|
|
||||||
 |
AD876JRS |
Analog Devices Inc |
IC ADC 10BIT 20MSPS CMOS 28SSOP |
Data Sheet |
|
|
||||||
