Product Summary

The ADSP-BF532SBSTZ400 is a high performance Blackfin processor. The ADSP-BF532SBSTZ400 combines a dual-MAC state-of-the-art signal processing engine, the advantages of a clean, orthogonal RISC-like microprocessor instruction set, and single instruction, multiple data (SIMD) multimedia capabilities into a single instruction set architecture. The ADSP-BF532SBSTZ400 contains a rich set of peripherals connected to the core via several high bandwidth buses, providing flexibility in system configuration as well as excellent overall system performance.

Parametrics

ADSP-BF532SBSTZ400 absolute maximum ratings: (1)Internal (Core) Supply Voltage (VDDINT):–0.3 V to +1.4 V ; (2)External (I/O) Supply Voltage (VDDEXT):–0.5 V to +3.8 V ; (3)Input Voltage:–0.5 V to +3.8 V ; (4)Output Voltage Swing:–0.5 V to VDDEXT +0.5 V ; (5)Load Capacitance:200 pF ; (6)Storage Temperature Range:–65℃ to +150℃; (7)Junction Temperature Under Bias:125℃.

Features

ADSP-BF532SBSTZ400 features: (1)Up to 600 MHz high performance Blackfin processor ; (2)Two 16-bit MACs, two 40-bit ALUs, four 8-bit video ALUs, 40-bit shifter ; (3)RISC-like register and instruction model for ease of programming and compiler-friendly support ; (4)Advanced debug, trace, and performance monitoring ; (5)0.85 V to 1.30 V core VDD with on-chip voltage regulation ; (6)1.8 V, 2.5 V, and 3.3 V compliant I/O ; (7)160-ball CSP_BGA, 169-ball PBGA, and 176-lead LQFP packages.

Diagrams

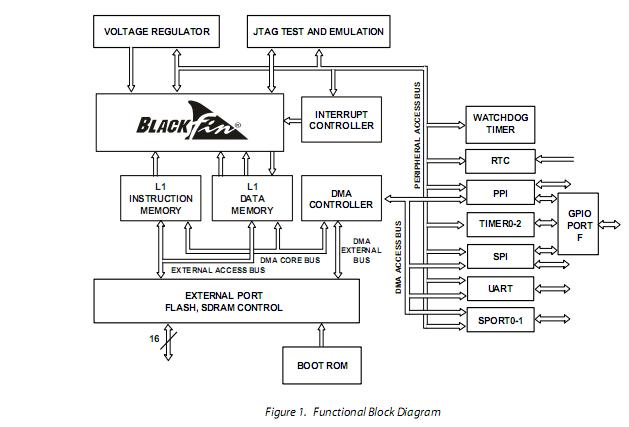

ADSP-BF532SBSTZ400 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

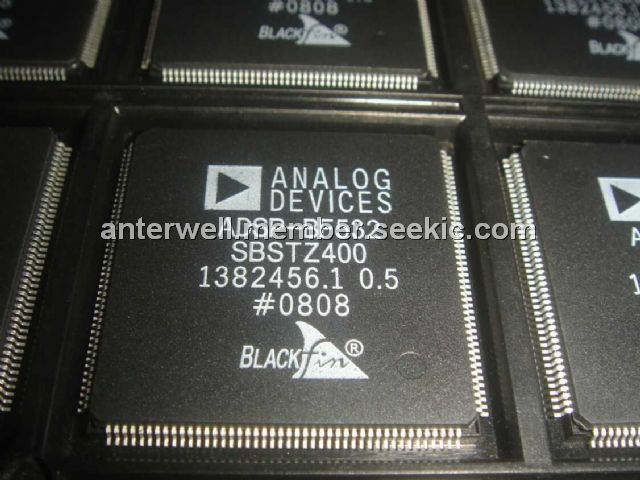

ADSP-BF532SBSTZ400
ADSP-BF532SBSTZ400


IC DSP CTLR 16BIT 400MHZ 176LQFP

Data Sheet

0-1: $11.08
1-10: $10.08
10-100: $8.56
100-250: $7.81
250-500: $7.31
500-1000: $6.72
